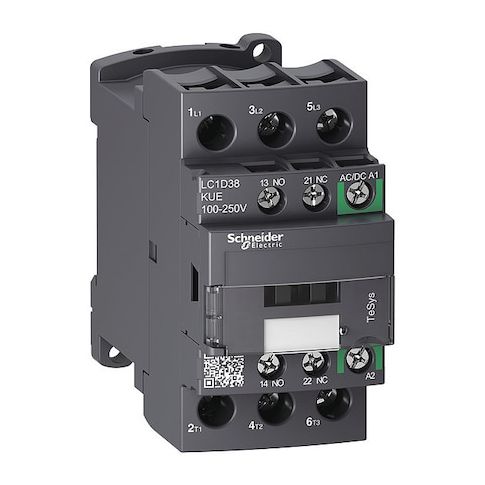

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D38KUE

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style device with a coil rated for operation within the specified voltage ranges (100–250 V AC/DC). It includes two auxiliary contacts (1 NO and 1 NC) and three normally open main contacts. Wiring is via screw clamp terminals, and the unit includes a protective cover

• enclosure rating: IP20. It is part of the TeSys Deca series and intended for use in motor control and resistive-load applications when installed according to applicable standards.

  - Poles: 3

• Main Contacts: 3 NO
• - Auxiliary Contacts: 2 (1 NO / 1 NC)
• - Reversing: Non-Reversing
• - Coil Voltage: 100–250 V AC/DC
• - Rated Voltage: 690 V AC
• - Full Load Current: up to 50 A (resistive loads) under specified conditions
• - Rated Making Capacity: has a rated making capacity as specified under standard testing conditions
• - Frequency: 50/60 Hz
• - Electrical Connection: Screw Clamp Terminals
• - Mounting: DIN Rail, Plate
• Mounts On: Plate, Rail
• - Enclosure/IP Rating: IP20
• - Protective Cover: Yes
• Embedded Surge Suppressor: No
• - Impulse Withstand: tested for impulse withstand voltage of up to 6 kV under laboratory conditions
• - Hold VA: 1.6 VA
• Inrush VA: 25 VA
• - Durability: designed durability based on standardized testing procedures
• actual performance may vary depending on application
• - Dimensions (H×W×D): 3.35 in × 1.77 in × 3.62 in
• - Net Weight: 0.442 kg
• - Series: TeSys Deca
• Standards: UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1
• - Fire Rating: UL 94 V1
• Overvoltage Category: CAT III
• - Phase: Three
