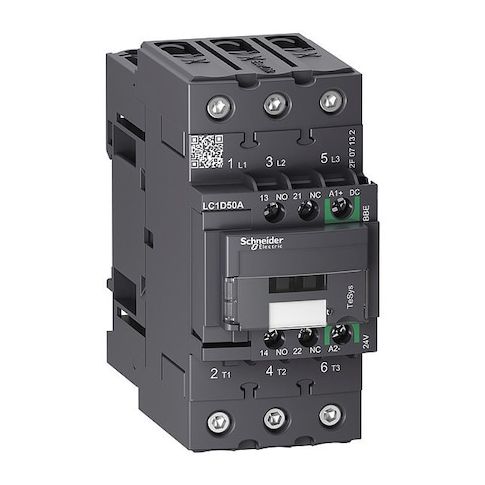

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50ABBE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient device for switching power circuits in electrical control systems. Ideal for motor and resistive load applications, it features a 3-pole, non-reversing design with a 24V DC coil and 1 NO/1 NC auxiliary contacts. Its compact size and screw clamp terminals make it easy to integrate into control systems, while its IP20-rated protection level ensures reliable operation in a variety of environments. Suitable for use in industrial settings, the TeSys Deca Green series magnetic contactor is a valuable addition to any electrical control system.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil and 1 NO/1 NC auxiliary contacts.
- It has screw clamp terminals for the control circuit and EverLink BTR connectors for the power circuit.
- It is designed for operation within the specified voltage range of 690 V AC with a 50/60 Hz operating range.
Top product applications:
- Motor applications
- Resistive load applications
- Electrical control systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil and 1 NO/1 NC auxiliary contacts. It is an IEC-style magnetic contactor intended to switch power circuits in electrical control systems with motor and resistive load applications. The control circuit uses screw clamp terminals, while the power circuit employs EverLink BTR connectors. It is part of the TeSys Deca Green series and rated for operation within the specified voltage range of 690 V AC, with a 50/60 Hz operating range, designed without an enclosure
- IP20-rated protection level.
- Coil voltage: 24 V DC
- - Poles and main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 1 NO / 1 NC
- - Reversing capability: Non-Reversing
- - Series and style: IEC
- TeSys Deca Green
- - Power/control connections: Control Circuit—Screw Clamp Terminals
- Power Circuit—EverLink BTR Connectors
- - Included items: Everlink Power Connections
- Protective Cover
- - Enclosure and protection: Designed without an enclosure
- IP20-rated protection level
- - Dimensions: 2.17 in W x 4.8 in H x 4.72 in D
- - Voltage rating: 690 V AC
- - Frequency: 50/60 Hz
- - Mounting: DIN Rail, Plate (Mounts On: Plate, Rail)
- - Weight: 0.997 kg
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.30
- Package Height: 2.40
- Package Weight: 2.35
