Miniature Circuit Breaker, C60SP Series, 25A, 3 Pole, 240/415/440V AC, 14kA at 240V AC, C Curve MPN:M9F22325
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6529490
Miniature Circuit Breaker, C60SP Series, 25A, 3 Pole, 240/415/440V AC, 14kA at 240V AC, C Curve

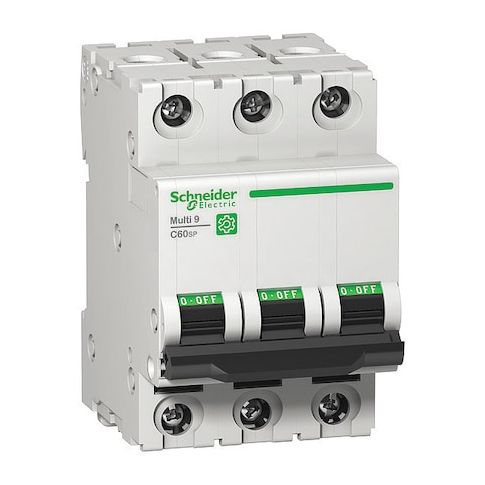

This miniature circuit breaker from Schneider is designed for branch circuit protection in a variety of applications, including commercial and industrial settings. With a 25A rating and 3-pole configuration, it provides reliable protection against overcurrent conditions. The C60SP series breaker features a C Curve, which offers fast tripping times for sensitive equipment. Its thermal magnetic trip type ensures reliable operation in both AC and DC environments. Suitable for use in 240/415/440V AC systems, this breaker meets UL Type UL 1077 standards and is suitable for applications requiring high fault current interruption, such as data centers and commercial buildings.
Top product features:
- Protects against overcurrent conditions with a 14kA short-circuit rating at 240V AC.
- Provides three-pole branch circuit protection for three-phase systems.
- Trips in response to both thermal and magnetic conditions.
Top product applications:
- Branch Circuit Protection
- Circuit Protection
- Power Distribution
IEC Supplementary Protector, Amps 25 A, AC Voltage Rating 240/415/440V AC, Max. AIR Rating 14kA at 240V AC, Series C60SP, Curve Type C, DC Voltage Rating Not Rated, Number of Poles 3, Phase 3, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1077, Terminal Connection Screw Clamp, Trip Type Thermal Magnetic, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 8 AWG, Length 3.19 in, Width 2.13 in, Depth 2.83 in
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.30
- Package Height: 2.10
- Package Weight: 0.85
Product info last updated on March 26, 2026 12:28am UTC
Category: Circuit Protection
