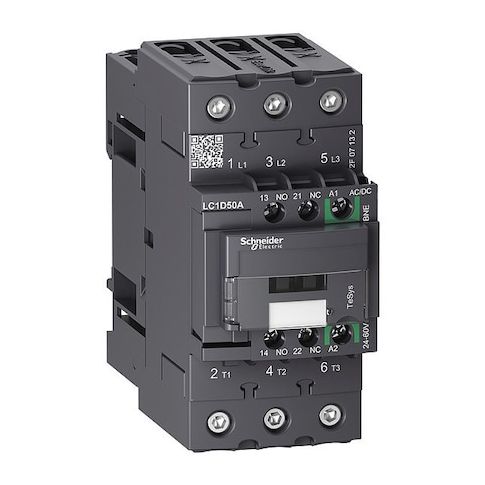

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50ABNE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and versatile device for controlling motor and resistive load circuits in a variety of applications. Its 3-pole, non-reversing design ensures secure and efficient switching, while its 24-60V AC/DC coil allows for flexibility in voltage requirements. Suitable for use in industrial, commercial, and residential settings, this contactor is ideal for applications such as HVAC systems, lighting control, and motor control. Its robust construction and high electrical ratings make it a great choice for demanding environments, providing long-lasting performance and reliability.
Top product features:
- The product has a 3-pole, non-reversing design for reliable and efficient switching of motor and resistive load circuits.
- It features a 24–60 V AC/DC coil for versatility in operation with a wide range of voltage sources.
- The product has EverLink BTR screw connectors for secure and easy power circuit connections.
Top product applications:
- Industrial Automation
- Motor Control Circuits
- Resistive Load Circuits
The item is a Schneider Electric IEC Magnetic Contactor from the TeSys Deca family. It is a 3-pole, non-reversing device with a 24–60 V AC/DC coil, rated for switching motor and resistive load circuits within specified conditions.
- Poles/phase: 3, Three-phase
- Reversing: Non-Reversing
- - Coil Voltage: 24–60 V AC/DC
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Series/frame: TeSys Deca IEC magnetic contactor
- - Rated voltage: 690V
- Maximum voltage rating: 690V AC -> Rated for operation up to 690V AC as specified
- Frequency: 50/60 Hz
- - Enclosure and protection: IP20
- No Enclosure
- - Electrical connections: Control Circuit – Screw Clamp Terminals
- Power Circuit – EverLink BTR Screw Connectors
- - Mounting: DIN Rail, Plate
- - Dimensions: Depth 4.72 in
- Height 4.8 in
- Width 2.17 in
- - Weight: 0.997 kg
- - Included features: Everlink Power Connections
- Protective Cover (Includes Protective Cover: Yes)
- - Standards: UL Listed
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- CSA
- CCC
- UKCA
- EAC
- KC
- - Impulse withstand voltage: rated for impulse withstand voltage of 6 kV as specified
- - Full Load Amps: Resistive 80 A
- Inductive 50 A
- - Electrical/mechanical durability: tested for electrical durability of approximately 1.8 million cycles and mechanical durability of approximately 6 million cycles under standard testing conditions
- - Operating temperature: rated for operation within the specified temperature ranges (e.g., maximum ambient temperature of 140°F)
- - Other electrical ratings: Hold VA 1 VA
- Inrush VA 15 VA
