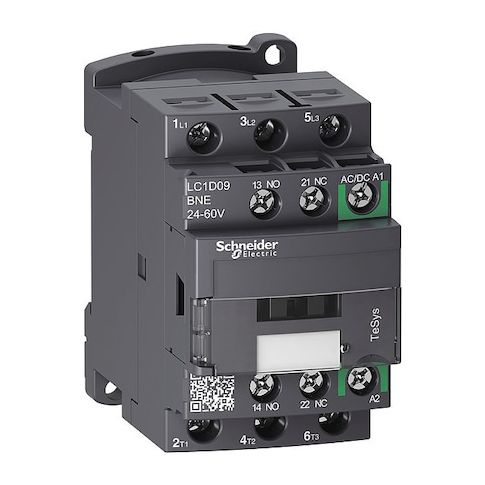

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09BNE
Free Shipping
In Stock
The IEC Magnetic Contactor from Schneider is a reliable and versatile switching device suitable for motor control and resistive-load applications. Its 3-pole, non-reversing design and screw clamp terminals provide efficient and safe operation within a wide voltage range of 24-60 V AC/DC. The unit's compact size and DIN Rail mounting options make it ideal for use in a variety of industrial settings, including control panels and automation systems. Its high durability and compliance with international standards ensure a long lifespan and trouble-free performance, making it a valuable addition to any electrical system.
Top product features:
- 3-pole, non-reversing switching device
- Includes one normally open and one normally closed auxiliary contact
- Rated for use in motor control and resistive-load applications
Top product applications:
- Motor control applications
- Resistive-load applications
- General-purpose switching applications
The IEC Magnetic Contactor is a 3-pole, non-reversing switching device rated for use in motor control and resistive-load applications within specified parameters. It is rated for coil voltages of 24 to 60 V AC/DC within specified ranges and includes one normally open and one normally closed auxiliary contact (2 total). The unit uses screw clamp terminals, is part of the TeSys Deca series, and includes protective cover
- compatible with enclosure options as per installation requirements
- protective cover included but does not guarantee environmental protection in all conditions. It is rated for up to 690 V and rated for operation at frequencies of 50/60 Hz within specified limits.
Key features
- - Poles/main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Coil voltage: 24–60 V AC/DC
- - Electrical ratings: based on standardized testing
- actual performance may vary depending on conditions
- - Connection and enclosure: Screw Clamp terminals
- compatible with enclosure options as per installation requirements
- protective cover included but does not guarantee environmental protection in all conditions
- - Mechanical/electrical durability: durability ratings based on testing standards
- actual lifespan depends on operating environment and usage patterns
- - Environmental/standards: IP20
- impulse withstand: tested for impulse withstand up to specified voltage under controlled conditions
- standards: conforms to applicable standards as listed
- Reversing: Non-Reversing
- - Series/size: TeSys Deca
- Frame/Code: TeSys
- - Mounting/installation: DIN Rail, Plate
- Mounts On Plate, Rail
- - Physical dimensions: Width 1.77 in
- Depth 3.38 in
- Height 3.03 in (Overall Depth 3.39 in)
- - Operating parameters: Frequency 50/60 Hz
- Max voltage rating 690 V
- Signalling voltage 17 V (Signalling)
- Signalling current 5 mA
- - Weight: 0.368 kg
- - Other: Inrush VA 15 VA
- Hold VA 0.9 VA
- Impedance 2.5 mΩ
- Impulse withstand: tested for impulse withstand up to specified voltage under controlled conditions
- does not imply immunity from damage outside these parameters
- Fire rating UL 94 V1
- Reversing: No
- Series: TeSys Deca
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.90
- Package Height: 2.30
- Package Weight: 0.85
