IEC Supplementary Protector, GFP Series, 40 A, 4 Pole, 240V AC, 1.5kA at 240V AC, A Curve MPN:M9R84440
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6525202

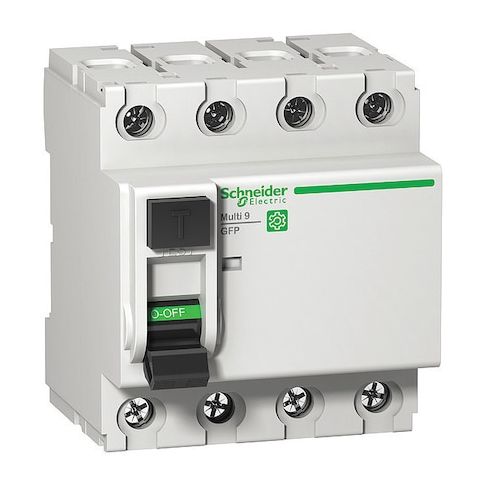

IEC Supplementary Protector, GFP Series, 40 A, 4 Pole, 240V AC, 1.5kA at 240V AC, A Curve
Protect your distribution circuits with the Schneider GFP Series IEC Supplementary Protector, designed to provide reliable ground fault protection in a compact, DIN rail-mountable package. Rated for 40A and 240V AC, this protector features a 1.5kA maximum air rating and meets UL Type UL 1053 standards. Ideal for use in distribution applications, it also offers thermal and magnetic trip types, ensuring safe and efficient operation. With a minimum wire size of 18 AWG and maximum wire size of 2 AWG, this protector is suitable for a wide range of applications and provides reliable protection against ground faults.
Top product features:
- Protects against overcurrent and short circuits
- Provides ground fault protection with a rated residual current of 260 mA
- Features a thermal magnetic trip type for reliable circuit interruption
Top product applications:
- Distribution
- Ground Fault Protection
- Circuit Breaker
IEC Supplementary Protector, Amps 40 A, AC Voltage Rating 240V AC, Max. AIR Rating 1.5kA at 240V AC, Series GFP, Curve Type A, DC Voltage Rating Not Rated, Number of Poles 4, Phase 3, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1053, Terminal Connection Tunnel, Rated Residual Current 260 mA, Trip Type Thermal Magnetic, Application Distribution, Ground Fault Protection, Min. Wire Size 18 AWG, Max. Wire Size 2 AWG, Length 3.19 in, Width 2.83 in
Additional Information
- Country of Origin: ES
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.00
- Package Height: 3.30
- Package Weight: 0.75
