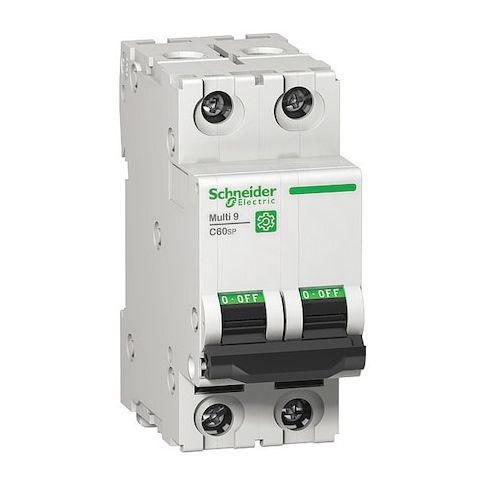

Miniature Circuit Breaker, C60SP Series, 20A, 2 Pole, 240/415/440V AC, 14kA at 240V AC, C Curve MPN:M9F22220
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6523951
Miniature Circuit Breaker, C60SP Series, 20A, 2 Pole, 240/415/440V AC, 14kA at 240V AC, C Curve
Protect your electrical circuits with the Schneider C60SP Series Miniature Circuit Breaker. Designed for branch circuit protection, this 20A, 2-pole breaker offers reliable protection against overloads and short circuits in a compact, DIN rail-mounted package. With a maximum short-circuit current rating of 14kA at 240V AC, it provides robust protection for a wide range of applications, including commercial and industrial settings. Easy to install and maintain, the C60SP Series breaker features a thermal-magnetic trip mechanism and a toggle actuator for simple operation. Its compact size and durable construction make it an ideal choice for a variety of electrical protection needs.
Top product features:
- Protects against overcurrent and short circuits with a thermal magnetic trip type
- Provides branch circuit protection for 240/415/440V AC systems
- Has a maximum air rating of 14kA at 240V AC
Top product applications:
- Branch Circuit Protection
- Circuit Breaker Actuator Toggle
- DIN Rail Mounting Style
IEC Supplementary Protector, Amps 20 A, AC Voltage Rating 240/415/440V AC, Max. AIR Rating 14kA at 240V AC, Series C60SP, Curve Type C, DC Voltage Rating Not Rated, Number of Poles 2, Phase 1, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1077, Terminal Connection Screw Clamp, Trip Type Thermal Magnetic, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 8 AWG, Length 3.19 in, Width 1.42 in, Depth 2.83 in
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.70
- Package Height: 3.50
- Package Weight: 0.55
Product info last updated on February 2, 2026 2:38pm UTC
Category: Circuit Protection
