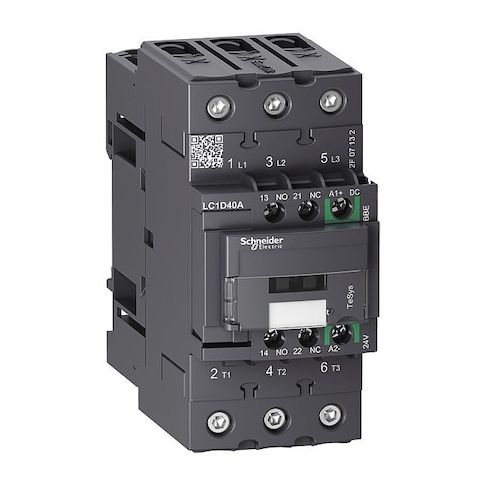

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40ABBE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. With its 3-pole, non-reversing design and 24V DC coil, it provides precise control and high-performance switching. The device features two auxiliary contacts, 1NO/1NC, for added functionality and flexibility. Suitable for use in a variety of industries, including manufacturing, HVAC, and more, this contactor offers improved safety, reduced downtime, and increased productivity. Its robust design and durable construction ensure long-lasting performance, making it an ideal choice for demanding applications.
Top product features:
- IEC Magnetic Contactor with 1NO/1NC auxiliary contacts for control and monitoring of the power circuit.
- The device has a 3-pole non-reversing design for reliable and efficient motor control.
- The product features EverLink BTR screw connectors for secure and reliable power connections.
Top product applications:
- Motor control systems
- Resistive load control systems
- Industrial automation systems
The item is a Schneider Electric IEC Magnetic Contactor from the TeSys Deca Green series. It is a 3-pole, non-reversing device with a 24 V DC coil and two auxiliary contacts (1NO/1NC). The control circuit uses screw clamp terminals, while the power circuit uses EverLink BTR connectors. It is rated for use with motor control and resistive loads within specified electrical parameters and is shipped without an integrated surge suppression device or enclosure.
- Coil Voltage: 24 V DC
- - Poles / Main Contacts: 3 poles
- 3 main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- Auxiliary Contact Configuration: 1NO/1NC
- - Control and Power Connections: Control Circuit – Screw Clamp Terminals
- Power Circuit – EverLink BTR Screw Connectors
- Includes Everlink Power Connections
- - Mounting: DIN Rail and Plate
- Mounts On – Plate, Rail
- - Enclosure / Protection: No Enclosure
- IP20
- - Electrical Ratings: Rated for operation up to 690V AC within specified conditions
- Frequency 50/60 Hz
- - Load Capability: Rated for resistive loads up to 60 A and inductive loads up to 40 A under specified conditions
- - Short-Time Withstand Current: Power Circuit capable of withstanding short-term current surges up to 720 A as per applicable standards
- Signalling Circuit up to 140 A
- - Making Capacity: has a making capacity of approximately 800 A at 440 V, subject to testing standards and conditions
- AC Signalling 140 A
- DC Signalling 250 A
- - Mechanical / Electrical Durability: Rated for mechanical durability of approximately six million cycles and electrical durability based on standard testing procedures
- - Environmental / Fire: Mercury Free
- Pollution Degree 3
- UL 94 V-1 flammability rating per standardized testing methods
- - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- - Dimensional / Weight: Width 2.17 in
- Height 4.8 in
- Depth 4.72 in
- Net Weight 0.992 kg
- - Series / Reversing: Series TeSys Deca Green
- Reversing: No (Non-Reversing)
- - Operating Conditions: Frequency 50 Hz
- Phase: Three
- Operating Speed 3600 cycles/hr
- Non-Reversing
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 5.50
- Package Height: 2.70
- Package Weight: 2.35
