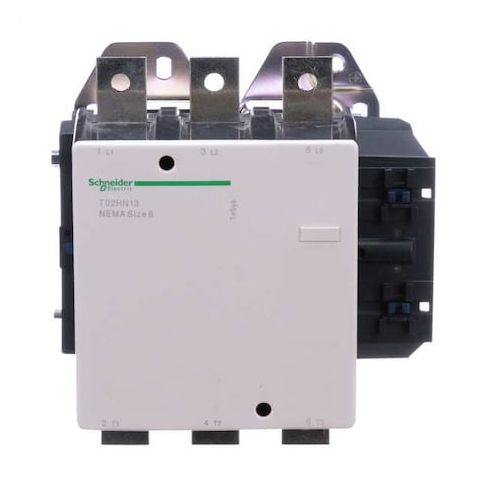

120VAC Non-Reversing Magnetic Contactor 3P 540A NEMA 6 MPN:T02HN13F7
120VAC Non-Reversing Magnetic Contactor 3P 540A NEMA 6
The Schneider TeSys N 3P 540A NEMA 6 Magnetic Contactor is a reliable and efficient solution for controlling high-power loads in industrial settings. With a 120V AC coil voltage and 540A full load current, this non-reversing contactor is suitable for applications such as motor control, conveyor systems, and pumps. Its NEMA 6 enclosure rating and screw clamp terminals ensure easy installation and maintenance. The contactor's high horsepower ratings of 200hp at 240V AC and 400hp at 480V AC make it ideal for heavy-duty applications. Its compact size and durable design make it a valuable addition to any industrial control system.
Top product features:
- 120VAC coil voltage allows for standard household electrical connections
- Non-reversing capability ensures consistent motor operation and prevents accidental motor rotation
- Three-phase operation supports high horsepower applications up to 400 hp at 480V AC
Top product applications:
- Motor control in industrial automation systems
- Automotive manufacturing assembly lines
- Heavy-duty machinery control in construction equipment
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 6, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 540 A, Reversing Capability Non-Reversing, Overall Height 9.37 in, Overall Width 8.9 in, Terminal Connection Type Screw Clamp Terminals, Series TeSys N, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 200 hp, Horsepower @ Three Phase - 480V AC 400 hp, Phase Three
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.80
- Package Width: 11.80
- Package Height: 10.80
- Package Weight: 25.20
Product info last updated on January 28, 2026 3:40pm UTC
Category: Industrial Electrical Controls and Automation
