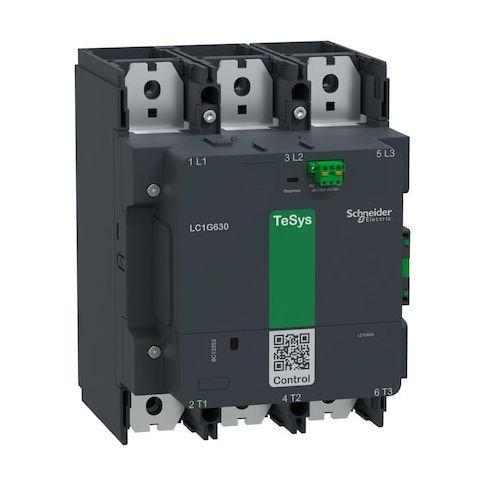

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Spring Type MPN:LC1G630EHEN

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, TeSys Giga series device with 2 auxiliary contacts configured as 1NC/1NO. It uses a coil voltage of 48–130 V AC/DC and features spring-type terminals mounted on a plate. This single-phase contactor is designed for operation at nominal frequency of 50/60 Hz and rated for operation within the specified voltage range of up to 1000 V AC. It has a rated full-load current of up to 630 A (inductive) and 1,050 A (resistive) under specified conditions, has IP20 protection, and is rated for up to 5,000,000 mechanical cycles. The operating temperature range is -13°F to 140°F. Dimensions are provided as specifications

• actual performance may vary based on installation conditions. Standards compliance includes CSA, EN/IEC, JIS, and UL.

  - Item: IEC Magnetic Contactor

• - Poles: 3
• - Auxiliary contacts: 2 (1NC/1NO)
• - Coil voltage: 48–130 V AC/DC
• - Terminal connection: Spring Type
• - Mounting: Plate
• - Phase: Single
• - Maximum voltage rating: operation within the specified voltage range of up to 1000 V AC
• - Frequency: 50/60 Hz
• - IP rating: IP20
• - Full-load current: Inductive up to 630 A
• Resistive up to 1,050 A under specified conditions
• - Mechanical durability: 5,000,000 cycles
• - Operating temperature: -13°F to 140°F
• - Dimensions: 8.31 in W × 11.18 in H × 10.47 in D (dimensions are provided as specifications
• actual performance may vary based on installation conditions)
• - Series: TeSys Giga
• - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
• - Embedded surge suppressor: No
• - Includes auxiliary contacts: Yes
