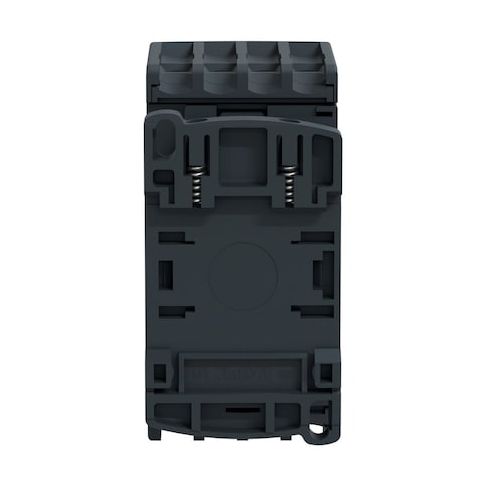

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp MPN:LC1D258BL
Out Of Stock
The Schneider TeSys Deca IEC Magnetic Contactor is a reliable and efficient electrical switch designed for use in a variety of applications. Suitable for 24V DC systems, this 4-pole, non-reversing contactor features screw clamp terminals and includes two auxiliary contacts configured as 1NC/1NO. With a high electrical durability of 1,400,000 cycles and mechanical durability of 30,000,000 cycles, this contactor is ideal for use in industrial control systems, motor control, and other applications where high reliability is required. Its compact design and DIN Rail mounting make it easy to integrate into existing systems, providing a reliable and efficient solution for a wide range of applications.
Top product features:
- The IEC Magnetic Contactor has a non-reversing capability.
- It includes two auxiliary contacts configured as 1NC/1NO.
- It uses screw clamp terminals.
Top product applications:
- Industrial control systems
- Motor control circuits
- Power distribution systems
The IEC Magnetic Contactor is a 4-pole, non-reversing electrical switch with a 24V DC coil. It uses screw clamp terminals and includes two auxiliary contacts configured as 1NC/1NO. It is part of the TeSys Deca series and is categorized as an IEC Magnetic Contactor, rated for use within specified electrical parameters and standards.
Key features:
- - Item: IEC Magnetic Contactor
- Series: TeSys Deca
- Contactor style: IEC
- - Phase/Poles: Three-phase, 4 poles
- - Coil voltage: 24V DC
- - Reversing capability: Non-Reversing
- - Auxiliary contacts: 2 (1NC/1NO)
- Includes auxiliary contacts: Yes
- Auxiliary contact form: 1NC/1NO
- - Terminal connection: Screw Clamp
- Mounting style: DIN Rail, Plate
- - IP rating: IP20
- - Maximum voltage rating: 690V AC
- - Frequency: 50 Hz
- - Electrical durability (AC-1): 1,400,000 cycles
- - Mechanical durability: 30,000,000 cycles
- - Full load current: Inductive 40 A
- Resistive 200 A
- - Full load amps (Inductive): 150 A
- - Resistance properties: Conforms to relevant fire resistance and insulation specifications (based on testing or certification)
- - Standards: CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 60947-4-1, EN 60947-5-1, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1
- - Overall dimensions: Depth 4.21 in
- Height 3.58 in
- Width 1.77 in
- - Embedded surge suppressor: No
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.72
- Package Width: 3.74
- Package Height: 2.17
- Package Weight: 1.40
