120VAC Reversing Magnetic Contactor 3P 45A NEMA 2 MPN:T02DN23G7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6062201

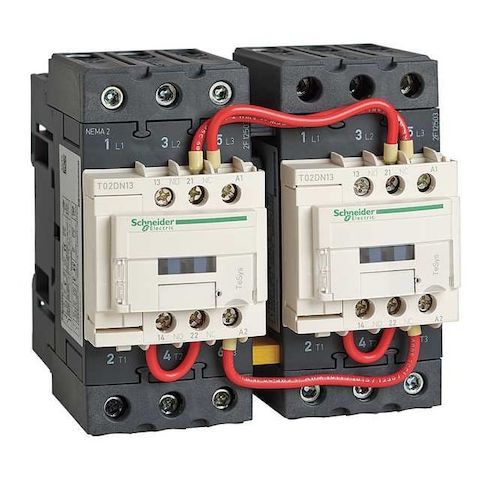

120VAC Reversing Magnetic Contactor 3P 45A NEMA 2
This 120VAC reversing magnetic contactor is a versatile and reliable solution for controlling three-phase motors in a variety of applications. With a full load current of 45A and a reversing capability, it's ideal for use in conveyor systems, pumps, and other equipment that require frequent direction changes. The contactor's compact size and screw clamp terminals make it easy to integrate into existing systems. Its high horsepower ratings of 15hp at 240V AC and 25hp at 480V AC make it suitable for demanding industrial applications, including manufacturing and material handling.
Top product features:
- Reversing capability allows the product to switch direction of current flow
- Has two auxiliary contacts for additional control or monitoring
- Supports inductive loads up to 45A full load current
Top product applications:
- Motor control for industrial machinery
- Control of three-phase AC motors in applications such as pumps and fans
- Reversing control for conveyor belts and other material handling systems
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Reversing, Overall Height 5.47 in, Overall Width 4.67 in, Terminal Connection Type Screw Clamp Terminals, Series TeSys N, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp, Phase Three
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 49 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 6.50
- Package Height: 5.30
- Package Weight: 4.60
Product info last updated on March 17, 2026 6:15pm UTC
Category: Industrial Electrical Controls and Automation
