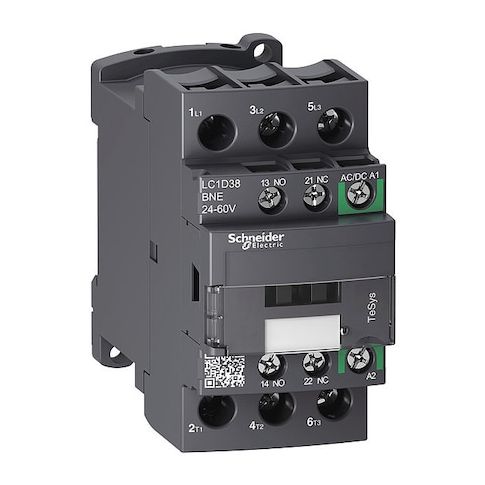

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D38BNE
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. Its 3-pole, non-reversing design ensures smooth and secure operation, while its screw clamp terminals and embedded protective cover provide added safety and durability. Suitable for use in a wide range of applications, including industrial automation, HVAC systems, and commercial lighting, this contactor offers flexibility and versatility. With its compact size and robust design, it's an ideal choice for demanding environments, and its certifications to international standards ensure compliance with regulatory requirements.
Top product features:
- IEC Magnetic Contactor has 3 poles for main contacts, allowing for control of 3-phase loads.
- The unit includes auxiliary contacts (1 NO / 1 NC) for additional control and monitoring capabilities.
- The contactor has a non-reversing design, preventing accidental motor reversal and ensuring safe operation.
Top product applications:
- Motor Control
- Resistive Load
- Motor Control and Resistive Load
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within specified motor control and resistive load applications. The unit is part of the TeSys Deca family, uses screw clamp terminals, and is rated for operation at voltages up to 690V AC within specified limits. Coil voltages are 24–60 V AC/DC within specified parameters, and it includes auxiliary contacts (1 NO / 1 NC) as specified.
- Application: Motor Control, Resistive Load
- - Coil Voltage: 24–60 V AC/DC
- - Aux Contacts: 2 total (1 NO / 1 NC)
- - Contactor Style: IEC
- Reversing: Non-Reversing
- - Poles/Main Contacts: 3 poles
- 3 main contacts
- - Mounting: DIN Rail, Plate
- Electrical connection: Screw Clamp
- - Enclosure/IP Rating: No Enclosure
- IP20
- - Rated Voltage: 690V AC
- - Full Load Amps: 50 A resistive, 38 A inductive
- - Maximum/Make/Break Capacities: Conforms to these capacity ratings under standard testing conditions
- actual performance may vary based on application specifics
- - Frequency: 50/60 Hz
- - Dimensions/Weight: Depth 3.62 in
- Height 3.35 in
- Width 1.77 in
- Net weight 0.442 kg
- - Series/Frame: TeSys Deca
- - Special features: Includes protective cover
- Embedded surge suppressor: No
- - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.70
- Package Height: 1.90
- Package Weight: 0.95
