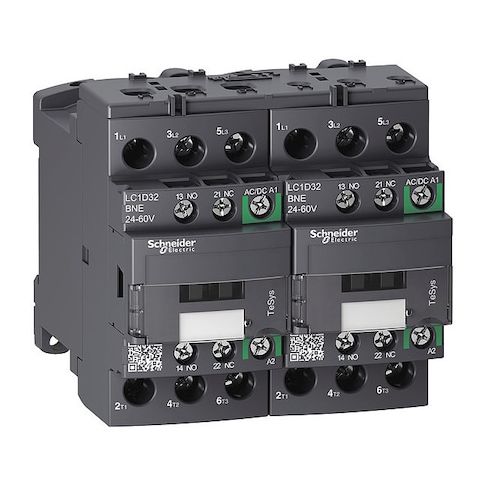

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D32BNE
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in motor control and resistive-load applications. Its 3-pole, reversing design allows for flexible operation, while the 24-60 V AC/DC coil ensures compatibility with various voltage sources. With 1 normally open and 1 normally closed auxiliary contact, this contactor provides seamless control and monitoring. Suitable for use in industrial settings, it offers durability and long lifespan, making it an ideal choice for applications in manufacturing, HVAC, and other industries where reliable power control is crucial.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is designed to control power circuits in motor control and resistive-load applications.
- It uses an IEC-standard magnetic coil to open and close main contacts.
- It includes 1 normally open and 1 normally closed auxiliary contact.
Top product applications:
- Motor Control
- Resistive Load
- TeSys Deca
The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing, electrically operated switch designed to control power circuits in motor control and resistive-load applications. It uses an IEC-standard magnetic coil to open and close main contacts, features a 24-60 V AC/DC coil, and includes 1 normally open and 1 normally closed auxiliary contact. The device is part of the TeSys Deca family, with screw clamp terminals and mounting options suitable for DIN rail or plate
- it is designed to operate within the specified voltage and frequency ranges. It includes protective cover and has no built-in surge suppressor.
- Application: Motor Control, Resistive Load
- - Coil Voltage: 24-60 V AC/DC
- - Poles: 3
- Reversing: Yes
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Connection: Screw Clamp Terminals
- Mounting: DIN Rail, Plate
- - Series/Frame: TeSys Deca / TeSys
- - Voltage/Frequency: 690 V AC
- 50/60 Hz
- - IP Rating / Enclosure: IP20
- No Enclosure
- - Load Capabilities: Load capabilities are provided based on standard testing conditions
- actual performance may vary depending on application conditions.
- - Durability: Durability ratings are based on standardized testing procedures under specific conditions
- actual lifespan may vary in real-world use.
- - Standards: UL Listed
- CCC, CSA, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, and others
- - Protection/Extras: Embedded surge suppressor No
- Protective cover Yes
- - Physical: Net weight 0.923 kg
- Dimensions ~3.35 in (height) x 3.54 in (width) x 3.62 in (depth)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 53 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.75
- Package Height: 5.38
- Package Weight: 2.10
