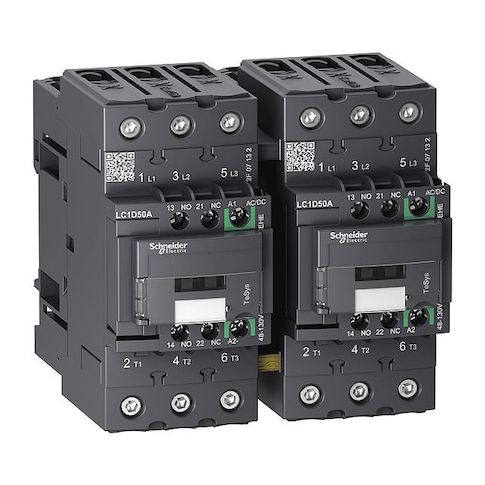

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D50AEHE
Free Shipping
In Stock
The Schneider Electric TeSys Deca IEC Magnetic Contactor is a versatile and reliable device for motor control and resistive loads. Its 3-pole, reversing design allows for efficient and flexible operation within specified parameters. With a coil voltage range of 48-130 V AC/DC and two auxiliary contacts, this contactor is ideal for a variety of applications, including industrial automation, HVAC systems, and commercial equipment. Its durable design withstands up to 6 million mechanical cycles and 1.8 million electrical cycles, ensuring consistent performance and extending the lifespan of the device. Suitable for use in a range of industries, this contactor offers a reliable and efficient solution for motor control and load management.
Top product features:
- The product has 3-pole operation, allowing for efficient control of multiple circuits simultaneously.
- It features reversing capability, enabling the device to switch the direction of current flow to accommodate different motor control applications.
- The product includes two auxiliary contacts (1NO/1NC), providing additional control and monitoring functions to enhance overall system reliability and flexibility.
Top product applications:
- Motor Control
- Resistive Load
- Embedded surge suppressor: Not included
The product is Schneider Electric’s IEC Magnetic Contactor (TeSys Deca), a 3-pole, reversing device rated for operation within specified parameters for motor control and resistive loads. It is energized by a coil rated 48 to 130 V (AC or DC) and includes two auxiliary contacts (1NO/1NC). The control circuit uses screw clamp terminals, while the power circuit employs EverLink BTR screw connectors. It is rated for operation at voltages up to 690 V AC
- equipped with a protective cover (note: does not imply safety certification or guarantee)
- it does not include an embedded surge suppressor
- enclosure details are as specified.
- Poles: 3
- - Reversing: Yes
- - Auxiliary contacts: Includes two auxiliary contacts (1NO/1NC)
- - Coil voltage: 48–130 V AC/DC
- - Control/Power connections: Screw Clamp (control)
- EverLink BTR (power)
- - Rated voltage: 690 V AC
- - Enclosure/IP: IP20
- No Enclosure
- - Series: TeSys Deca (IEC)
- - Included features: Auxiliary Contacts Yes
- Protective Cover Yes (note: protective cover included
- does not imply safety certification or guarantee)
- - Dimensions: Depth 4.72 in
- Height 4.80 in
- Width 4.69 in
- - Net weight: 2.164 kg
- - Durability: Mechanical 6 Mcycles
- Electrical 1,800,000 cycles and 500,000 cycles
- - Frequency: 50/60 Hz
- - Application: Motor Control, Resistive Load
- - Embedded surge suppressor: Not included
- enclosure details are as specified
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 53 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.35
- Package Width: 7.48
- Package Height: 6.30
- Package Weight: 4.63
