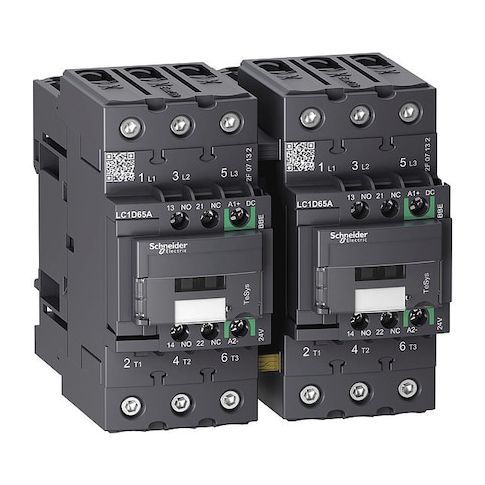

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp MPN:LC2D65ABBE

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing, IEC-standard magnetic switching device with a 24 V DC coil. It is rated for use within specified electrical parameters for its intended application and includes two auxiliary contacts (1NO/1NC) plus a protective cover. The unit is compatible with DIN rail or plate mounting and is listed without an enclosure (IP20).

  Key features

• - Coil voltage: 24 V DC
• - Poles and main contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Reversing: Yes
• - Series/Frame: TeSys Deca / TeSys
• - Rated voltage and frequency: 690 V AC
• 50/60 Hz
• - Enclosure and protection: IP20
• No enclosure
• - Mounting: DIN Rail, Plate
• Mounts On: Plate, Rail
• - Electrical connections: Control Circuit—Screw Clamp
• Power Circuit—EverLink BTR Screw Connectors
• - Weight: 2.174 kg
