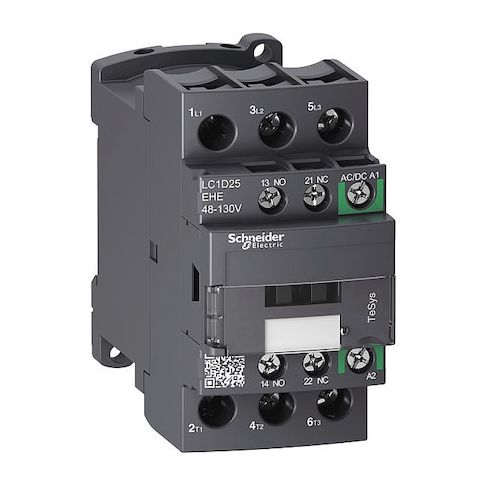

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25EHE

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switch rated for operation within IEC standards. It operates with a coil voltage range of 48–130 V AC/DC as specified, opening and closing main contacts, with auxiliary contacts arranged as 1NO/1NC. The device is part of the TeSys Deca family and features screw clamp terminals. It is rated for use in motor control and resistive load applications within specified parameters and is commonly used where standardized sizing and interchangeability are required in control panels.

  Key features

• - Poles and contacts: 3 poles
• 3 normally open main contacts
• auxiliary contacts 1NO/1NC (2 total).
• - Coil and control: Coil voltage 48–130 V AC/DC
• coil hold 1.3 VA
• reversing: non-reversing.
• - Series and enclosure: Series TeSys Deca
• Contactor style IEC
• enclosure: No Enclosure
• provided with a protective cover (if applicable).
• - Ratings and protection: Rated for operation at voltages up to 690 V AC, according to specifications
• IP20
• impulse withstand 6 kV.
• - Currents and making capacity: Rated currents and making capacity: up to specified values under standard conditions (Resistive 40 A
• Inductive 25 A
• Rated making capacity 140 A (AC signalling), 250 A (DC signalling), 450 A @ 440 V (Power Circuit)).
• - Durability and timing: durability figures are based on manufacturer testing standards
• actual lifespan may vary depending on usage conditions
• operating times: typical times per manufacturer data
• actual timing may vary based on application conditions.
• - Physical and mounting: Net weight 0.433 kg
• dimensions (W×H×D) 1.77 in × 3.35 in × 3.62 in
• mounting on DIN Rail or Plate
• screw clamp terminals.
• - Standards and environment: Standards include UL Listed and EN/IEC 60947-4-1, EN/IEC 60947-5-1
• environment attributes Mercury Free, Pollution Degree 3
• fire rating UL 94 V1.
