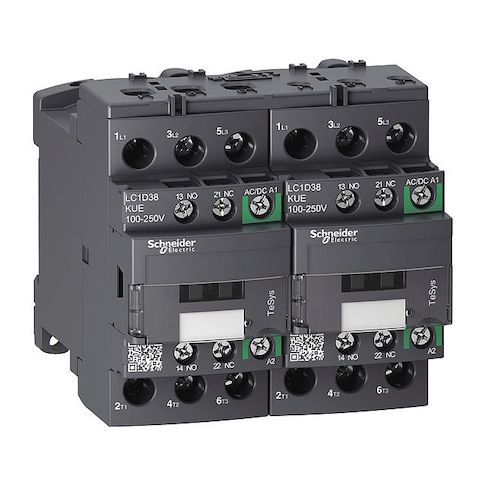

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D38KUE

• The item is an IEC Magnetic Contactor from Schneider Electric. It is a three-pole reversing device with 1 normally open and 1 normally closed auxiliary contact, rated for operation within specified load types in IEC-style control circuits. The coil is rated for operation within the specified voltage range of 100–250 V AC/DC and wiring uses screw-clamp terminals. It is part of the TeSys Deca family and is compatible with mounting on DIN rails or plates as per installation guidelines.

  - Poles: 3

• Reversing: Yes
• - Auxiliary contacts: 1NO/1NC
• - Coil: 100–250 V AC/DC
• - Electrical connection: Screw Clamp
• - Enclosure: No Enclosure
• IP20
• - Mounting: DIN Rail, Plate
• Mounts On: Plate, Rail
• - Series/Frame: TeSys Deca
• - Maximum voltage: rated for use at voltages up to 690V AC within specified conditions
• - Full load current: rated for full load currents of up to 50 A resistive and 38 A inductive under specified conditions
• - Rated making capacity: has a rated making capacity as specified under standard testing conditions
• - Operating times: typical operating times based on manufacturer specifications
• actual performance may vary depending on application conditions
• - Weight: 0.933 kg
• - Includes: Auxiliary Contacts Yes
• Protective Cover Yes
• Embedded Surge Suppressor No
• - Non-Overlap Time: 1.5 ms
• - Frequency: 50/60 Hz
• - IP Rating: IP20
