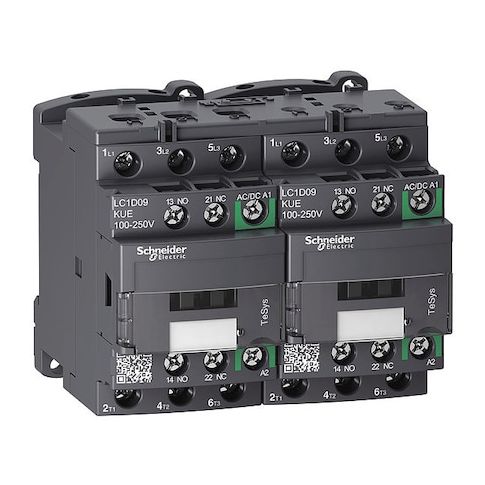

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D09KUE

• Schneider Electric’s IEC Magnetic Contactor (TeSys Deca) is a three-pole, reversing, electrically operated switch used to control power circuits in motor control and resistive-load applications. It uses a coil rated 100–250 V AC/DC, features screw clamp terminals, and includes two auxiliary contacts (1NO/1NC). It has no embedded surge suppressor and no enclosure, with a maximum voltage rating of 690 V and operation at 50/60 Hz. Suitable for mounting on DIN rails or plates

• conforms to IEC standards for magnetic contactors within the TeSys family.

  - Application: Motor Control, Resistive Load

• - Coil Voltage: Rated for coil voltages between 100 V and 250 V AC/DC as per specifications
• - Poles: 3
• - Reversing: Yes
• - Auxiliary Contacts: 1NO/1NC (2 total)
• - Electrical Connection: Screw Clamp Terminals
• - Enclosure: No Enclosure
• IP20
• - Series/Frame: TeSys Deca
• - Frequency: 50/60 Hz
• - Max Voltage: 690V AC
• - Full Load Amps (Resistive): Rated for operation at resistive loads up to 20 A under specified conditions
• - Full Load Amps (Inductive): Rated for operation at inductive loads up to 9 A under specified conditions
• - Embedded Surge Suppressor: No
• - Protective Cover: Yes
• - Weight: 0.783 kg
• - Dimensions: Height 3.03 in
• Width 3.54 in
• Depth 3.38 in (Overall Depth 3.39 in)
• - Fire Rating: Meets UL 94 V1 flammability rating (material specification)
• - Impulse Withstand Voltage: Rated for impulse withstand voltage of 6 kV within specified testing conditions
• - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL Listed
• - Mechanical Durability: 15 Mcycles
• - Electrical Operating Durability: 2,400,000
• 600,000
• - Mounting: DIN Rail, Plate
• - Rated Making Capacity: 250 A @ 440V (Power Circuit)
