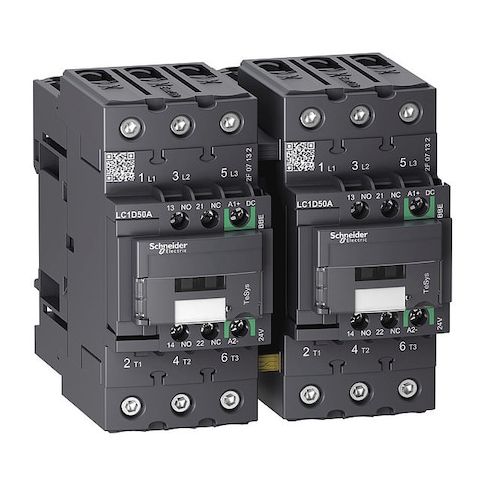

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp MPN:LC2D50ABBE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load switching. Its 3-pole reversing design allows for flexible operation, while the 24V DC coil ensures easy integration into a wide range of control systems. With 2 auxiliary contacts and a robust IP20 protection rating, this contactor provides reliable switching and protection for your applications. Suitable for use in industrial and commercial settings, it's ideal for applications such as conveyor systems, pumps, and fans, where precise control and reliability are crucial. Its compact design and DIN rail mounting make it easy to integrate into existing systems.
Top product features:
- Provides motor control and resistive load switching with 2 auxiliary contacts (1 NO and 1 NC)
- Has a reversing capability for operation within specified parameters
- Offers screw clamp terminals for the control circuit and EverLink BTR screw connectors for the power circuit
Top product applications:
- motor control
- resistive load
- motor control, resistive load
The item is a Schneider Electric IEC Magnetic Contactor (TeSys Deca), a 3-pole reversing contactor with a 24 V DC coil. It provides motor control and resistive load switching with 2 auxiliary contacts (1 NO and 1 NC). The control circuit uses screw clamp terminals and the power circuit uses EverLink BTR screw connectors. It is IEC-compliant
- No enclosure
- IP20 protection
- protective cover included. The unit mounts on DIN rails or plates and has the dimensions 4.69 in (W) x 4.8 in (H) x 4.72 in (D) with a net weight of 2.164 kg.
Key features:
- - Poles: 3
- Reversing: Rated for operation within specified parameters
- - Coil voltage: 24 V DC
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Series/standard: TeSys Deca (IEC)
- - Rated voltage and frequency: 690 V AC
- 50/60 Hz
- - Full-load currents: 50 A inductive
- 80 A resistive
- - Durability: 6 Mcycles mechanical
- 6,000,000 electrical operating cycles
- - Protection and enclosure: IP20
- No Enclosure
- includes protective cover
- no embedded surge suppressor
- - Mounting and connections: DIN Rail/Plate mounting
- Plate/Rail mounting
- Control: Screw Clamp
- Power: EverLink BTR
- - Additional ratings: Impulse withstand voltage: 6 kV
- weight 2.164 kg
- application: motor control, resistive load
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 46 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.35
- Package Width: 7.48
- Package Height: 6.30
- Package Weight: 4.63
