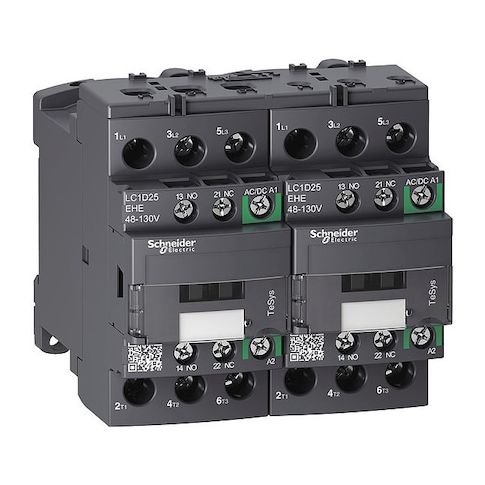

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D25EHE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and versatile solution for motor control and resistive load applications. With a 3-pole reversing type design and 1NC/1NO auxiliary contacts, this contactor is suitable for a variety of industries and uses. Its 48-130 V AC/DC coil rating and screw clamp terminals provide flexibility and ease of installation. The contactor is also tested for electrical and mechanical durability, ensuring a long lifespan and minimal downtime. Ideal for use in industrial control systems, the TeSys Deca magnetic contactor is a reliable choice for applications requiring high performance and efficiency.
Top product features:
- It has 3 poles for switching and controlling loads.
- It is a reversing type, allowing for bidirectional control.
- It includes 2 auxiliary contacts (1NO/1NC) for additional control and monitoring capabilities.
Top product applications:
- Motor control
- Resistive load applications
- Suitable for applications when used according to specifications
Schneider Electric IEC Magnetic Contactor, 3-pole reversing type, with 1NC/1NO auxiliary contacts and a coil rated 48–130 V AC/DC. It is an IEC-style magnetic contactor rated for switching motor and resistive loads within specified parameters, using screw clamp terminals for wiring. The unit is part of the TeSys Deca family, does not include an enclosure and an IP20 rating.
- Poles and reversing: 3 poles
- Reversing: Yes
- - Auxiliary contacts: 2 total (1NO/1NC)
- Includes auxiliary contacts: Yes
- - Coil voltage: 48–130 V AC/DC
- - Electrical connection: Screw Clamp Terminals
- - Frame/Series: TeSys Deca (TeSys)
- - Voltage rating: rated for operation up to 690V AC within specified conditions
- - Frequency: 50/60 Hz
- - Application: suitable for motor control and resistive load applications when used according to specifications
- - IP / enclosure: IP20
- does not include an enclosure
- - Weight and size: Net weight 0.913 kg
- Overall dimensions (Depth x Height x Width): 3.62 in x 3.35 in x 3.54 in
- - Full load amps (loads): rated for full load currents of up to 40 A resistive and 25 A inductive under specified conditions
- - Rated making capacity: as specified under standard testing conditions
- - Operating/durability: tested for electrical and mechanical durability within standardized testing protocols
- - Protective features: Built-in protective cover: Yes
- - Operating times: 45–55 ms (closing)
- 20–90 ms (opening)
- - Temperature ratings: operates within the specified temperature ranges
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 51 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.75
- Package Height: 5.38
- Package Weight: 2.10
