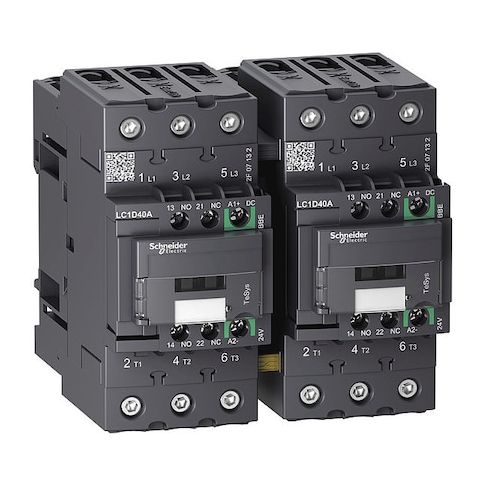

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Reversing, Screw Clamp MPN:LC2D40ABBE

• The item is an IEC Magnetic Contactor from Schneider Electric (TeSys Deca), a 3-pole reversing device with a 24 V DC coil. It includes 2 auxiliary contacts (1 normally open / 1 normally closed) and is rated for use in motor control and resistive load applications within specified parameters. The control circuit uses Screw Clamp terminals and the power circuit uses EverLink BTR screws

• it is compatible with DIN rail or plate mounting as per installation guidelines and has an IP20 rating without additional enclosure.

  - Poles: 3

• - Reversing: Yes
• - Coil Voltage: 24 V DC
• - Auxiliary Contacts: 2 (1 normally open / 1 normally closed)
• - Series / Style: TeSys Deca
• IEC
• - Enclosure / Protection: has an IP20 rating without additional enclosure
• - Mounting: DIN Rail, Plate
• - Electrical Connections: Control Circuit – Screw Clamp
• Power Circuit – EverLink BTR
• - Maximum Voltage: rated for operation up to 690 V AC within specified conditions
• - Frequency: 50/60 Hz
• - Full Load Current: rated for full load currents of up to 60 A resistive and 40 A inductive under specified conditions
• - Rated Making Capacity: rated for making capacity within specified limits
• - Electrical Durability: tested for durability up to specified cycle counts under defined load conditions
• - Mechanical Durability: designed to withstand a specified number of mechanical operations
• - Dimensions (HxWxD): 4.80 in × 4.69 in × 4.72 in
• - Net Weight: 2.154 kg
• - Fire Rating: UL 94 V1
• - Impedance: has an impedance value as specified
• does not imply performance guarantee
• - Impulse Withstand Voltage: rated for impulse voltage withstand within the specified testing parameters
• - Insulation Resistance: insulation resistance exceeds the minimum threshold under test conditions
• - Shock Resistance: tested for shock resistance at specified levels
• does not guarantee safety in all environments
• - Vibration Resistance: tested for vibration resistance at these levels
• actual performance may vary based on application conditions
• - Working Height: suitable for operation at elevations up to this height when installed properly
• - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
• - Series: TeSys Deca
