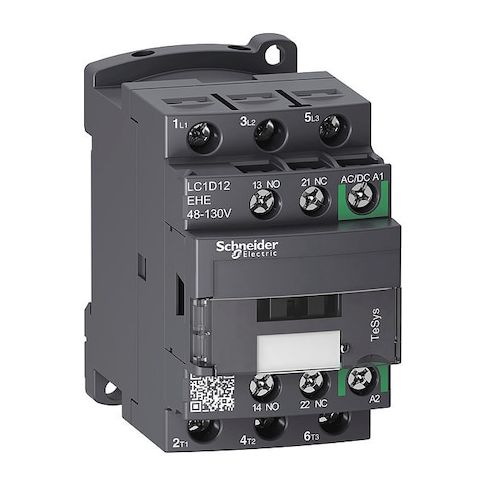

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12EHE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in various applications. Its non-reversing design ensures consistent and safe operation, while its 3-pole configuration allows for easy integration into existing systems. Compatible with coil voltages from 48-130 V AC/DC, this contactor is ideal for use in industrial automation, machinery control, and renewable energy systems. Its robust design and high-capacity ratings make it suitable for demanding applications, and its compact size and screw clamp terminals simplify installation and maintenance. Perfect for use in harsh environments, this contactor provides reliable and efficient control.
Top product features:
- Three-pole operation allows for simultaneous control of three power circuits.
- Non-reversing operation ensures that the contactor will only close in one direction, preventing accidental circuit reversal.
- Screw clamp terminals provide a secure and easy-to-use connection method for wiring.
Top product applications:
- Industrial Automation
- Electrical Panel Building
- Machine Control Systems
The Schneider Electric IEC Magnetic Contactor (TeSys Deca) is a three-pole, non-reversing electromagnetic switch rated for operation within specified parameters for controlling power circuits. It is compatible with coil voltages within the specified range of 48–130 V AC/DC and contains auxiliary contacts (1NO/1NC) and main contacts as specified. The device uses screw clamp terminals and comes with a protective cover
- it does not include an embedded surge suppressor or enclosure.
- Coil voltage: 48–130 V AC/DC
- - Poles/contacts: 3 poles
- main contacts 3 NO
- auxiliary contacts 2 (1NO/1NC)
- - Reversing: Non-Reversing
- - Voltage/frequency rating: 690 V AC
- 50/60 Hz
- - Currents and capacities: 12 A inductive
- 25 A resistive
- rated making 250 A @ 440 V (Power Circuit)
- rated breaking 250 A @ 440 V
- - Mounting/terminals: Screw Clamp terminals
- mounting on DIN Rail or Plate
- - Enclosure/IP: IP20
- No Enclosure
- - Series: TeSys Deca
- - Additional: Includes protective cover
- Impulse withstand 6 kV
- - Weight: 0.373 kg
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.70
- Package Height: 2.00
- Package Weight: 0.45
