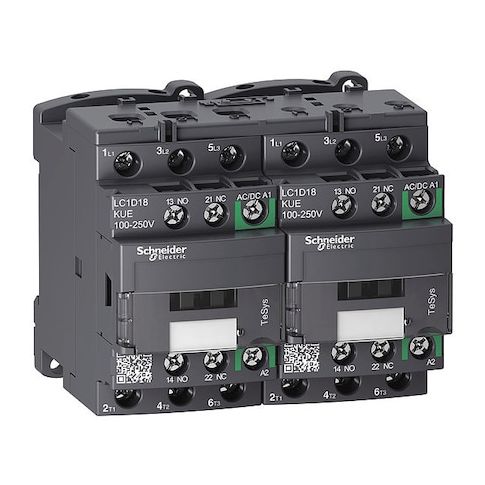

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D18KUE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a versatile, 3-pole control device ideal for power circuit switching in various applications. Its reversing function and 1NO/1NC auxiliary contacts make it suitable for motor control and load switching in industrial settings. The unit's compact design and screw clamp terminals simplify wiring and installation. With a wide voltage range and high current ratings, it can handle demanding loads. Suitable for use in control panels, machines, and other industrial equipment, this contactor offers reliable and efficient control. Its compact size and robust design make it a reliable choice for a range of applications.
Top product features:
- Reversing: The product can switch the direction of the power circuit.
- 1NO/1NC auxiliary contacts: The product includes two auxiliary contacts, one normally open and one normally closed, for additional control functionality.
- Screw Clamp terminals: The product uses screw clamp terminals for easy and secure wiring connections.
Top product applications:
- Control Panels
- Power Distribution Systems
- Motor Control Circuits
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole, reversing control device rated for switching power circuits within specified load parameters. It is rated for coil voltages within the specified range of 100–250 V AC/DC and includes one normally open and one normally closed auxiliary contact (1NO/1NC). The unit uses screw clamp terminals for wiring and is part of the TeSys Deca series, with an IEC design and a No Enclosure, IP20-rated housing. It is rated for operation at voltages up to 690 V AC within specified conditions and is compatible with frequency ranges of 50/60 Hz as per specifications.
- Poles: 3
- - Reversing: Yes
- - Coil Voltage: 100–250 V AC/DC
- - Auxiliary Contacts: 1NO/1NC (includes 2 auxiliary contacts total)
- - Terminals: Screw Clamp
- - Enclosure/IP: No Enclosure, IP20
- - Mounting: DIN Rail, Plate
- - Maximum Voltage: 690 V AC
- - Full Load Amps: Inductive 18 A
- Resistive 32 A
- - Frequency: 50/60 Hz
- - Frame/Series: TeSys Deca (TeSys family)
- - Fire Rating: UL 94 V1
- - Included features: Includes Protective Cover
- Embedded Surge Suppressor: No
- - Weight: 0.803 kg
- - Dimensions (approx.): Height 3.03 in
- Width 3.54 in
- Depth 3.38 in
- - Standards: UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and related certifications
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.75
- Package Height: 5.38
- Package Weight: 1.80
