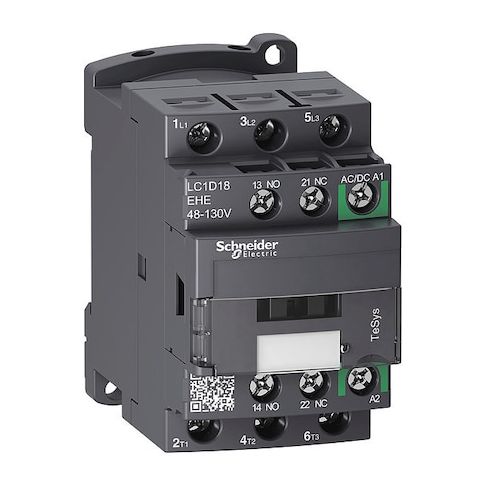

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D18EHE
The Schneider Electric IEC Magnetic Contactor is a versatile and reliable switching device designed for use in motor control and resistive load applications. Rated for use with voltages between 48-130V AC/DC, this 3-pole, non-reversing contactor features 2 auxiliary contacts and 3 normally open main contacts. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems. Suitable for a range of applications, including industrial control systems, HVAC, and lighting control, this contactor offers reliable and efficient switching performance, ensuring safe and efficient operation of electrical systems.
Top product features:
- The product has 3 main normally open contacts for switching and controlling loads.
- It has a 1 normally open and 1 normally closed auxiliary contact for additional control and monitoring.
- The product is rated for operation within a specified voltage range of 48–130 V AC/DC and is compatible with voltages up to 690 V AC (CAT III) at 50/60 Hz.
Top product applications:
- Motor control applications
- Resistive load applications
- General purpose switching applications
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switching device rated for use in specified motor control and resistive load applications. It features a coil voltage range of 48–130 V AC/DC, 1 normally open and 1 normally closed auxiliary contact (total of 2 auxiliary contacts), and 3 normally open main contacts. The device is part of the TeSys Deca line and uses screw clamp terminals, with no embedded surge suppressor and a protective cover included. It is rated for operation within the specified voltage range
- compatible with voltages up to 690 V AC (CAT III) at 50/60 Hz, and IP20 enclosure rating
- enclosure options are not included
- suitable enclosures should be selected based on application requirements. Mounting options include DIN rail or plate, and its measurements are 3.39 in depth, 3.03 in height, and 1.77 in width, with a net weight of 0.378 kg.
Key features:
- - Coil Voltage: 48–130 V AC/DC
- 50/60 Hz
- - Contacts: 3 main NO contacts
- 2 auxiliary contacts (1NO/1NC)
- - Reversing: Non-Reversing
- Phase: Three
- - Series/Style: TeSys Deca
- IEC Contactor
- - Voltage/Insulation: 690 V rated (max)
- Overvoltage CAT III
- - Enclosure/Protection: IP20
- enclosure options are not included
- Protective cover included
- - Mounting: DIN Rail, Plate
- - Physical: Depth 3.39 in
- Height 3.03 in
- Width 1.77 in
- Net Weight 0.378 kg
- - Durability/Rating: Electrical durability ratings provided as specifications
- actual performance may vary depending on usage conditions
- Mechanical Durability 15 Mcycles
- - Other: Impulse withstand voltage rating of 6 kV as specified
- UL/EN standards listed
- UL 94 V1 fire rating
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.63
- Package Width: 3.75
- Package Height: 2.19
- Package Weight: 0.86
