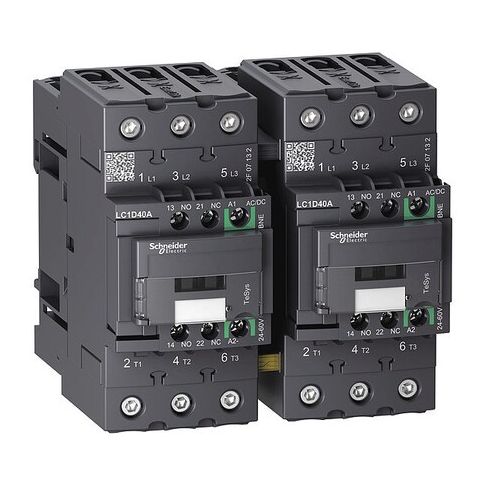

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D40ABNE

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing, coil-driven switch rated for use in control circuit applications within specified parameters. It is rated for operation within the specified coil voltage range

• includes 1NO/1NC auxiliary contacts. The device is suitable for installation in control panel environments as per applicable standards, features screw clamp terminals for the control circuit and EverLink BTR screw connectors for the power circuit, and is part of the TeSys Deca family. It does not include built-in surge suppression or enclosure features and is compatible with DIN rail and panel mounting methods.

  - Coil Voltage: 24–60 V AC/DC

• - Poles: 3
• - Reversing: Yes
• - Auxiliary Contacts: 1NO/1NC (2 total)
• - Main Contacts: 3 Normally Open
• - Control Circuit Terminals: Screw Clamp
• Power Circuit Terminals: EverLink BTR
• - Mounting Style: DIN Rail, Plate
• - Frame/Series: TeSys Deca
• - Enclosure / IP Rating: No Enclosure
• IP20
• - Rated Voltage: Up to 690 V AC within specified conditions
• - Frequency: 50/60 Hz
• - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
• - Rated Making Capacity: 140 A (AC Signalling), 250 A (DC Signalling), 800 A @ 440V (Power Circuit)
• - Rated Breaking Capacity: 800 A @ 440V
• - Electrical Operating Durability: Durability ratings are based on standardized testing
• actual lifespan may vary depending on usage conditions
• - Mechanical Durability: 6 Mcycles
• - Overvoltage Category: Conforms to category specifications but does not guarantee performance under all overvoltage conditions
• - Maximum Operating Temperature: 140°F
• - Dimensions: Depth 4.72 in
• Height 4.80 in
• Width 4.69 in
• - Net Weight: 2.154 kg
• - Inrush VA: 15 VA
• Hold VA: 1 VA
• - Impedance: 1.5 mΩ
