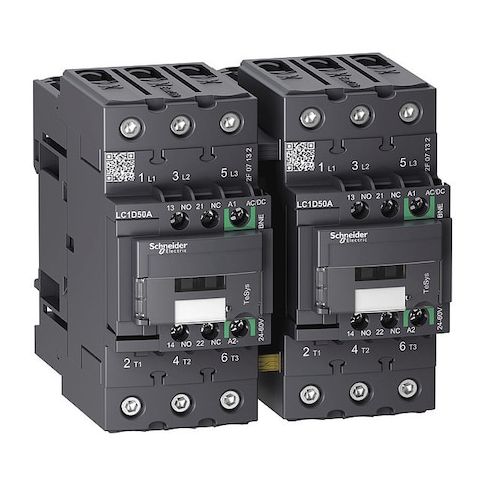

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D50ABNE

• The Schneider Electric IEC Magnetic Contactor is a 3-pole reversing IEC-style switch rated for use in motor control and resistive load applications within specified parameters. It is rated for operation with a coil voltage of 24–60 V AC/DC and includes one normally open and one normally closed auxiliary contact. The device is part of the TeSys Deca family and is configured for control panels with standardized IEC sizing, featuring control circuit screw clamps and power circuit EverLink BTR screw connectors. It is capable of reversing operation as specified and comes with a protective cover

• provided without an enclosure, suitable for indoor installation with IP20 protection rating.

  - Poles: 3

• - Coil Voltage: 24–60 V AC/DC
• - Reversing: Yes
• - Auxiliary Contacts: 1NO/1NC
• - Frame/Series: TeSys Deca
• - Mounting: DIN Rail, Plate
• Mounts On: Plate, Rail
• - Enclosure: Provided without an enclosure
• suitable for indoor installation with IP20 protection rating
• - Connection: Control Circuit Screw Clamp
• Power Circuit EverLink BTR
• - Maximum Voltage: Up to 690 V AC within specified conditions
• - Full Load Amps: 80 A resistive
• 50 A inductive (rated under specified conditions)
• - Rated Making Capacity: conforms to the listed making capacity ratings under standard test conditions
• - Short-Time Withstand Current: withstands short-time current surges as specified under test conditions
• actual performance may vary based on application specifics
• - Mechanical Durability: designed to endure at least the stated number of mechanical cycles when operated within specifications
• - Electrical Durability: tested for electrical durability up to the indicated cycle counts under defined testing parameters
• actual lifespan depends on operating environment and usage patterns
• - Fire Rating: UL 94 V1
• - Signalling Circuit Frequency: 25–400 Hz
• - Impulse Withstand Voltage: 6 kV
• - Net Weight: 2.164 kg
• - Dimensions (W×H×D): 4.69 in × 4.80 in × 4.72 in
• - Rated Voltage: 690 V
• - Standards (selected): UL Listed
• EN/IEC 60947-4-1, EN/IEC 60947-5-1
