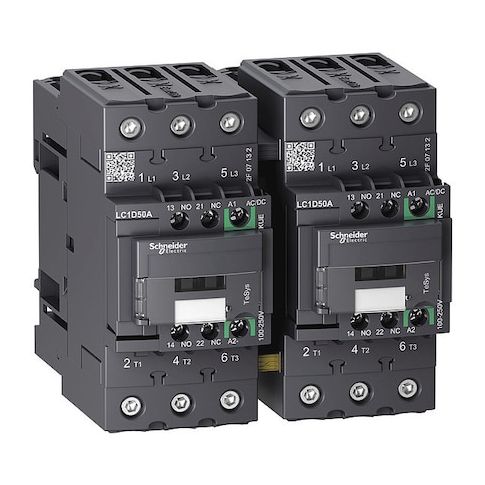

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D50AKUE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a versatile and reliable device designed for motor control and resistive loads. Its 3-pole reversing functionality and screw clamp control terminals make it ideal for a wide range of applications, including industrial automation, HVAC systems, and power distribution. This contactor offers improved durability and efficiency, with a tested mechanical lifespan of six million cycles and compliance with international standards such as UL Listed and EN/IEC 60947-4-1, 60947-5-1. Its compact design and easy installation make it a great choice for various industries and applications.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a reversing capability, allowing for easy switching between forward and reverse operation.
- The unit includes a protective cover that provides IP20 protection rating, safeguarding against dust and accidental contact.
- The contactor features EverLink power connections and screw clamp control terminals, providing reliable and secure connections for the control circuit and power circuit.
Top product applications:
- Motor Control and Resistive Load Applications
- Industrial Automation and Control Systems
- Power Distribution and Control Panels
The Schneider Electric IEC Magnetic Contactor is a 3-pole reversing device rated for operation with motor control and resistive loads within specified parameters. It is rated for coil voltages between 100–250 V AC/DC and uses an IEC-style construction with screw clamp control terminals and EverLink power connections. The unit is part of the TeSys Deca family, supports mounting on DIN rail or plate, and includes a protective cover with no enclosure.
- Coil voltage: rated for 100–250 V AC/DC
- - Poles and contacts: 3 main NO contacts
- auxiliary contacts total 2 (1 NO / 1 NC)
- - Reversing capability: includes reversing functionality as specified by manufacturer
- - Frame/Series: TeSys Deca
- Contactor style: IEC
- - Maximum voltage: up to 690 V AC
- current ratings are based on standard testing conditions
- - Load ratings: specified load ratings under standard test conditions
- - Protection and enclosure: conforms to IP20 protection rating
- includes protective cover but does not provide an enclosure
- - Connections: Control Circuit—Screw Clamp Terminals
- Power Circuit—EverLink BTR Screw Connectors
- - Dimensions and weight: Depth 4.72 in
- Height 4.80 in
- Width 4.69 in
- Net weight 2.164 kg
- - Durability and duty: tested for mechanical durability of approximately six million cycles under specified conditions
- electrical durability based on manufacturer data
- - Operating characteristics: typical operating times within the manufacturer's specifications
- - Other specs: 50/60 Hz
- 690 V rated voltage
- 3 NO main contacts
- Standards include UL Listed and EN/IEC 60947-4-1, 60947-5-1
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 53 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.35
- Package Width: 7.48
- Package Height: 6.30
- Package Weight: 4.63
