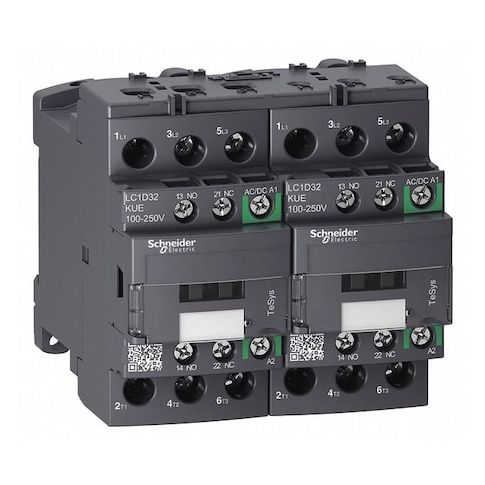

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D32KUE

• The item is a Schneider Electric IEC Magnetic Contactor rated for switching power circuits within specified parameters. It is a 3-pole reversing device with 1 normally open and 1 normally closed auxiliary contact (2 auxiliary contacts total) and a coil rated for 100–250 V AC/DC. Intended for use with motor control and resistive loads within specified ratings, it uses screw clamp terminations, is designed for DIN Rail or Plate mounting, and has an IP20 enclosure rating (no additional enclosure included). The unit rated for operation at 50/60 Hz within the specified voltage range up to 690 V AC, belonging to the TeSys Deca series.

  - Poles: 3

• - Reversing: Yes
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Coil voltage: 100–250 V AC/DC
• - Max voltage rating: 690 V AC
• - Full-load currents: Inductive 32 A
• Resistive 50 A (supports full-load currents up to these values when used within specified conditions)
• - Rated making capacity: under specified test conditions as per manufacturer specifications
• - Connection: equipped with screw clamp terminals suitable for wiring within specified parameters
• - Mounting: DIN Rail, Plate
• - Enclosure: IP20 (no enclosure included)
• - Series: TeSys Deca
• - Weight: 0.923 kg
• - Dimensions: Depth 3.62 in
• Height 3.35 in
• Width 3.54 in
• - Frequency: 50/60 Hz
• - Shock resistance: 8 G (open)
• 15 G (closed) for 11 ms
• - Protective cover: Yes
