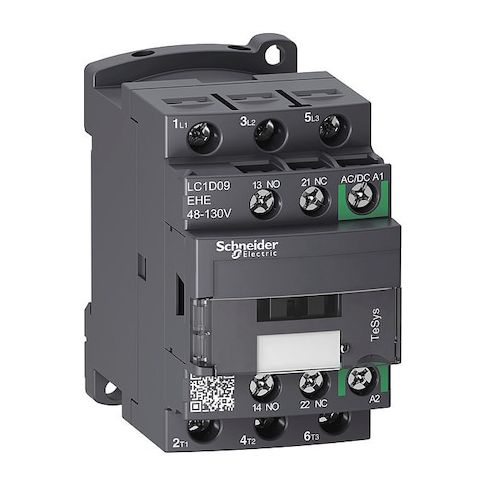

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09EHE

• Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with 1NO/1NC auxiliary contacts and a 48–130 V AC/DC coil. Designed to operate within specified parameters for controlling power circuits in motor control and resistive-load applications

• features conforming to IEC standards.

  - Poles: 3

• Main contacts: 3 NO
• Auxiliary contacts: 2 (1NO/1NC)
• - Coil voltage: 48–130 V AC/DC
• Frequency: 50/60 Hz
• - Contactor style/series: IEC
• Frame/Code: TeSys Deca
• Reversing: Non-Reversing
• - Electrical connection: Screw Clamp
• Terminal: Screw Clamp
• - Rated for operation up to 690 V AC/DC within specified conditions
• IP Rating: IP20
• - Enclosure: No Enclosure
• Includes Protective Cover
• - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL Listed, UL 60947-4-1
• - Mechanical durability: 15 Mcycles
• Electrical durability: 2.4 Mcycles (8 A AC-3, Less than 440 V)
• 0.6 Mcycles (25 A AC-1)
• 2.4 Mcycles (8 A AC-3e)
• - Full Load Amps: Inductive 9 A
• Resistive 20 A
• - Rated making capacity: 250 A @ 440 V (Power Circuit)
• 140 A (AC Signalling)
• 250 A (DC Signalling)
• - Short-time withstand: 100 A (1 s signalling)
• 120 A (500 ms)
• 140 A (100 ms)
• 30 A (40°C, 10 min Power Circuit)
• 61 A (40°C, 1 min)
• 105 A (40°C, 10 s)
• 210 A (40°C, 1 s)
• - Inrush VA: 25 VA
• Hold VA: 1.3 VA
• - In/out times: 45–55 ms (Closing)
• 20–90 ms (Opening)
• Non-overlap: 1.5 ms
• - Depth x Height x Width: 3.38 in × 3.03 in × 1.77 in
• - Net weight: 0.368 kg
• - Maximum ambient operating temperature: 140 °F (60 °C)
• - Shock resistance: 15 G (Closed)
• 10 G (Open)
• Impulse withstand voltage: 6 kV
• - Phase: Three
• Standards also include CAT III overvoltage category
• - Insulation resistance: Greater Than 10 MΩ (Signalling Circuit)
• - Environment attributes: Mercury Free
• Pollution Degree 3
