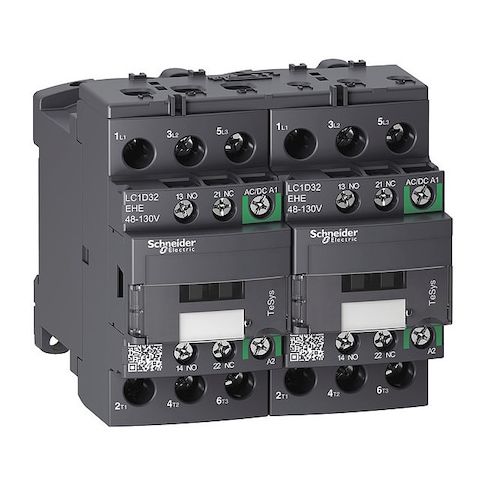

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D32EHE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and versatile device for motor control and resistive load switching in IEC-based control systems. Rated for operation within a wide voltage range of 48 to 130 V AC/DC, it features 3 poles, 1NO/1NC auxiliary contacts, and screw clamp terminals for easy mounting on DIN rail or plates. Suitable for applications in industrial automation, manufacturing, and other sectors, this contactor offers high durability with 2,100,000 electrical cycles and 15 million mechanical cycles, ensuring reliable performance in harsh environments. Its compact design and robust construction make it an ideal choice for a variety of applications.
Top product features:
- The product has 3 normally open main contacts.
- It is rated for operation within the specified voltage ranges of 48 to 130 V AC/DC.
- It includes auxiliary contacts (1NO/1NC) for reversing motor connection capabilities.
Top product applications:
- Motor Control Systems
- Motor Starters and Control Centers
- Power Distribution Units (PDUs) and Power Supplies
The Schneider Electric IEC Magnetic Contactor is a TeSys Deca 3-pole reversing contactor with 1NC/1NO auxiliary contacts and screw clamp terminals. It is rated for operation within the specified voltage ranges of 48 to 130 V AC/DC and is configured for motor control and resistive load switching within IEC-based control systems. The device includes auxiliary contacts (1NO/1NC) and designed for reversing motor connection capabilities as specified, with dimensions and weight suitable for panel or DIN rail mounting.
- Poles and contacts: 3 poles
- 3 normally open main contacts
- auxiliary contacts 1NO/1NC (2 total)
- includes auxiliary contacts: Yes
- - Reversing: Yes
- - Coil voltage and power: 48–130 V AC/DC
- Hold VA 1.3 VA
- Inrush VA 25 VA
- - Electrical rating and voltage: Electrical rating and voltage: Rated for use at voltages up to 690 V AC in accordance with applicable standards
- Frequency 50/60 Hz
- - Durability and performance: Electrical durability tested up to specified cycles under standard conditions: 2,100,000
- 900,000 cycles
- Mechanical Durability 15 Mcycles
- - Protection and enclosure: Protection and enclosure: IP20
- does not include an enclosure or surge suppression features unless specified elsewhere
- Protective Cover: Yes
- Fire resistance: constructed with materials meeting fire resistance ratings per applicable standards
- Pollution Degree 3
- - Current and making capacity: Current and making capacity: Rated Making Capacity based on standardized testing conditions and specifications: 140 A (AC Signalling)
- 250 A (DC Signalling)
- 550 A @ 440V (Power Circuit)
- - Connection and mounting: Connection and mounting: Screw clamp terminals
- compatible with DIN rail and plate mounting methods as per industry standards
- - Physicals: Net Weight 0.923 kg
- Overall Depth 3.62 in
- Overall Height 3.35 in
- Overall Width 3.54 in
- - Series and standards: Series TeSys Deca
- conforms to listed standards but does not guarantee specific performance outcomes beyond compliance
- - Additional electrical specs: Impedance 2 mΩ
- Impulse Withstand Voltage 6 kV
- Non-Overlap Time 1.5 ms
- - Operating temperatures: Maximum Operating Temperature 140 Degrees F
- Minimum Operating Temperature -40 Degrees F
- - Other: designed for reversing motor connection capabilities as specified
- Includes Protective Cover
- Mercury Free
- Signalling Circuit: Frequency 25 to 400 Hz
- Switching Current 5 mA (Signalling Circuit)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 53 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.75
- Package Height: 5.38
- Package Weight: 2.10
