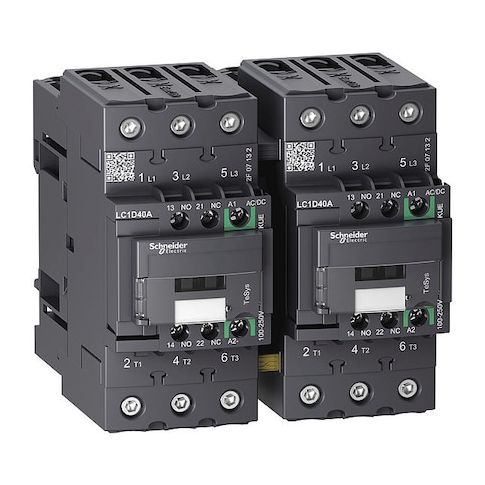

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D40AKUE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a versatile 3-pole reversing device ideal for a wide range of applications, including industrial automation, power distribution, and control systems. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems. The contactor's 100-250V AC/DC coil voltage and 60A resistive/40A inductive load ratings provide reliable operation in various environments. Suitable for DIN rail or plate mounting, this device is perfect for applications that require high reliability, flexibility, and ease of use, such as in manufacturing, HVAC, and renewable energy systems.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 3 main contacts and 2 auxiliary contacts, including 1 normally open and 1 normally closed contact.
- It operates from a coil voltage of 100–250 V AC/DC and uses screw clamp terminals for the control circuit.
- The device is rated for operation within a wide voltage and frequency range, including 690V AC at 50/60 Hz.
Top product applications:
- Industrial Automation
- Control Panel Assembly
- Machine Control Systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole reversing device (1NC/1NO auxiliary contacts). It operates from a coil voltage of 100–250 V AC/DC and uses screw clamp terminals for the control circuit, with EverLink BTR connectors for the power circuit. Part of the TeSys Deca family, it is intended for DIN rail or plate mounting. Rated for operation within the specified voltage and frequency ranges.
Key features
- - Poles and contacts: 3 main contacts (3 NO)
- auxiliary contacts: 2 total (1NO/1NC)
- - Coil voltage: 100–250 V AC/DC
- - Reversing: Yes
- - Auxiliary contact configuration: 1NO/1NC
- - Mounting and enclosure: DIN Rail, Plate
- IP20
- No Enclosure
- - Connections: Control Circuit—Screw Clamp Terminals
- Power Circuit—EverLink BTR Screw Connectors
- - Rated voltage/frequency: 690V AC
- 50/60 Hz
- - Load ratings: 60 A resistive
- 40 A inductive
- - Durability: Electrical 2,000,000 cycles
- Mechanical 6 Mcycles
- - Weight: 2.154 kg
- - Series/standards: TeSys Deca
- UL Listed
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 53 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.35
- Package Width: 7.48
- Package Height: 6.30
- Package Weight: 4.63
