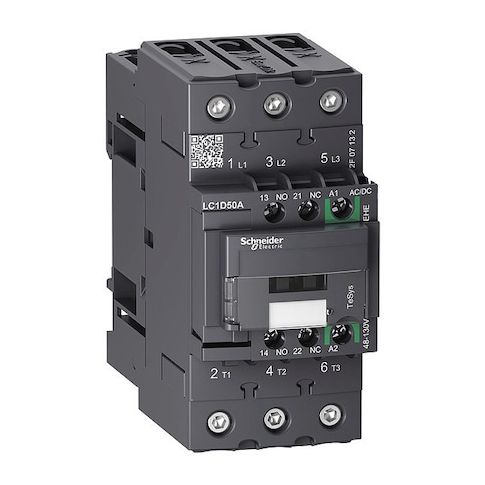

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50AEHE
The Schneider Electric TeSys Deca IEC Magnetic Contactor is a reliable and versatile device for switching power in electrical control circuits. Suitable for indoor use without additional enclosure, it can be mounted on DIN rail or plate and features a protective cover. With a wide operating voltage range of 48-130V AC/DC, it's ideal for motor control and resistive loads. The unit's screw clamp terminals and EverLink BTR connectors ensure easy wiring and mounting. Its high-quality design and durable construction make it a great choice for applications in various industries, including manufacturing, HVAC, and renewable energy.
Top product features:
- Operates from a coil voltage of 48 to 130 V (AC/DC) to switch power in electrical control circuits.
- Includes 1 normally open and 1 normally closed auxiliary contact for controlling and monitoring the circuit.
- Uses screw clamp terminals for the control circuit and EverLink BTR connectors for the power circuit to provide reliable and secure connections.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Resistive Load Control Systems
The item is an IEC Magnetic Contactor (Schneider Electric TeSys Deca), a three-pole, non-reversing device used to switch power in electrical control circuits. It operates from a coil voltage of 48 to 130 V (AC/DC) and includes 1 normally open and 1 normally closed auxiliary contact (alongside three main normally open contacts). Suitable for use with motor control and resistive loads within specified electrical ratings
- the unit uses screw clamp terminals for the control circuit and EverLink BTR connectors for the power circuit. Rated for operation in environments conforming to IP20 standards
- suitable for indoor use without additional enclosure, with mounting options on DIN rail or plate, and a protective cover included.
- Poles and contacts: 3 poles
- main contacts 3 NO
- auxiliary contacts 2 (1NO/1NC)
- - Coil and voltage: Coil 48–130 V AC/DC
- Rated voltage 690 V
- Frequency 50/60 Hz
- Phase: Three
- - Wiring and mounting: Control circuit—Screw Clamp Terminals
- Power circuit—EverLink BTR Screw Connectors
- Mounting on DIN Rail or Plate
- Includes protective cover
- Indoor use without enclosure
- - Electrical ratings: Electrical ratings specify maximum current capacities under rated conditions
- Max voltage: 690 V AC
- Impulse withstand: Voltage withstand specifications are based on testing standards
- actual performance may vary depending on installation conditions
- - Durability and conditions: Durability figures indicate the number of operational cycles under standard test conditions but do not guarantee performance over time or in all environments
- Mechanical durability and Electrical operating durability lines both reflect standard test conditions and do not guarantee performance in all situations
- - Standards and conformity: Standards include CCC, CSA, UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1
- - Physical and environment: Net weight 0.997 kg
- Depth 4.72 in
- Height 4.8 in
- Width 2.17 in
- Working height up to 9842.52 ft
- Fire rating UL 94 V1
- Series TeSys Deca
- Frame TeSys
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 46 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.50
- Package Height: 2.38
- Package Weight: 2.29
