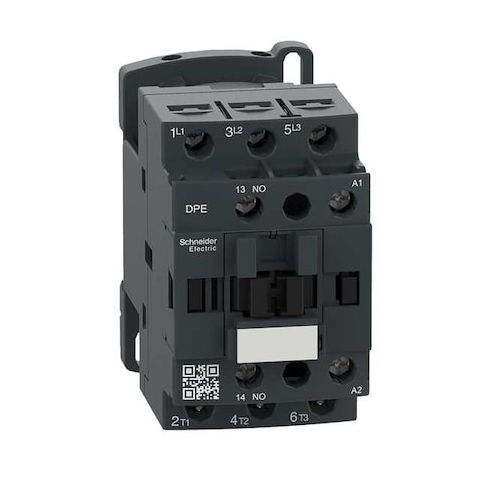

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE25G7

• The Schneider Electric IEC Magnetic Contactor is a TeSys Easy, IEC-style three-pole magnetic switch designed for power control in electrical systems. It features a 120 V AC coil, is non-reversing, and includes 1 normally open auxiliary contact. The device uses screw clamp terminals and is suited for motor control and resistive load applications, rated for operation at voltages up to 690 V AC within the specified frequency range.

  Key features

• - Poles and contacts: 3 poles
• 3 normally open main contacts
• 0 normally closed main contacts
• auxiliary contact 1 NO (Includes auxiliary contacts: Yes)
• - Coil and control: Coil voltage 120 V AC
• Reversing: Non-Reversing
• - Electrical ratings: Rated voltage up to 690 V AC
• Rated insulation 600/690 V
• Full Load Amps 25 A (resistive)
• 25 A (inductive)
• - Making capacity: 140 A (AC Signalling), 250 A (DC Signalling), 300 A @ 440 V (Power Circuit)
• - Connection and mounting: Screw Clamp terminals
• Mounting: DIN Rail, Plate
• Mounts on Plate, Rail
• IP20
• No Enclosure
• - Physical size and weight: Height 3.03 in
• Width 1.77 in
• Depth 3.39 in
• Net weight 0.33 kg
• - Durability: Electrical durability tested according to applicable standards
• actual lifespan may vary based on usage conditions
• - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
• - Additional specs: Impedance 2.5 mΩ
• Impulse withstand voltage 6 kV
• Signalling frequency 25–400 Hz
• Signalling current 5 mA
• Switching voltage (signalling circuit) up to approximately 17 V
• Special features include without built-in suppressor module and overvoltage category III
• - Environmental and design notes: Max temperature 85°C
• Series: TeSys Easy
