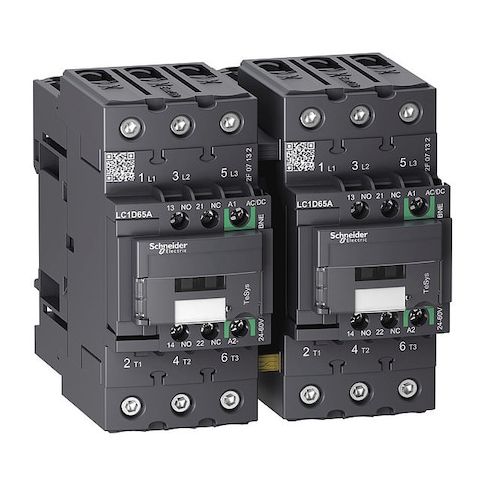

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D65ABNE
The Schneider Electric IEC Magnetic Contactor is a versatile and reliable solution for motor control and resistive load applications. Its 3-pole design and reversing functionality make it ideal for use in a variety of settings, including industrial and commercial environments. With a rating for coil voltages between 24 and 60 V AC/DC and a maximum power rating of 1000 A @ 440 V, this contactor is capable of handling a wide range of loads. Its compact design and easy mounting options make it a convenient choice for applications where space is limited, and its durable construction ensures reliable performance over time.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 3 poles and 3 main normally open contacts.
- The product is rated for reversing operation.
- The control circuit uses screw clamp terminals.
Top product applications:
- Motor Control
- Resistive Load
- No specific application
The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing type rated for switching power circuits within specified parameters. It is rated for coil voltages between 24 and 60 V AC/DC and features 1 normally open and 1 normally closed auxiliary contacts. The control circuit uses screw clamp terminals, while the power circuit employs EverLink BTR screw connectors. It is part of the TeSys Deca series, with no embedded surge suppressor and no enclosure, and is compatible with DIN rail or plate mounting according to installation guidelines, net weight: approximately 2.174 kg.
- Application: Motor Control, Resistive Load
- - Poles and contacts: 3 poles
- 3 main NO contacts
- Auxiliary contacts 1NO/1NC
- - Reversing: Yes
- - Coil voltage: 24–60 V AC/DC
- - Series/Frame: TeSys Deca
- IEC Magnetic Contactor
- - Control/power connections: Control Circuit – Screw Clamp
- Power Circuit – EverLink BTR
- - Enclosure/Protection: IP20
- No Enclosure
- Includes Protective Cover
- - Mounting: DIN Rail, Plate
- - Voltage and frequency: 690 V AC
- 50/60 Hz
- - Rating highlights: Rated Making Capacity 140 A (AC Signalling), 250 A (DC Signalling), 1000 A @ 440 V (Power)
- - Load ratings: Full Load Amps – Resistive 80 A
- Inductive 65 A
- - Durability: Mechanical 6 Mcycles
- Electrical 1,800,000 and 500,000 cycles
- - Physical size: Width 4.69 in
- Height 4.80 in
- Depth 4.72 in
- - Other: Impulse Withstand Voltage 6 kV
- Net weight: approximately 2.174 kg
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.35
- Package Width: 7.48
- Package Height: 6.30
- Package Weight: 4.63
