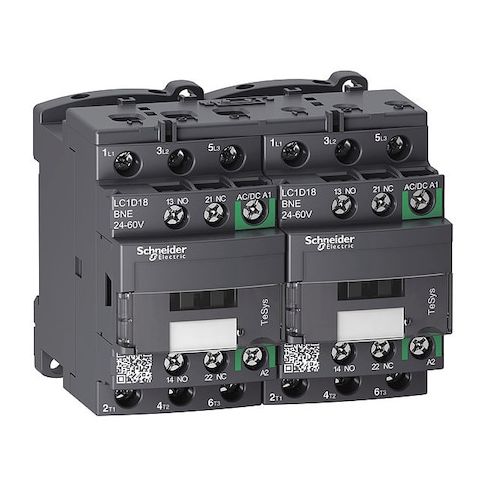

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D18BNE
The Schneider IEC Magnetic Contactor is a reliable and efficient switching device for control panels, suitable for a wide range of applications. Its compact and modular design allows for standardized sizing and interchangeability, making it ideal for use in various industrial and commercial settings. With a coil voltage of 24-60 V AC/DC and 3 poles, this reversing contactor is perfect for controlling motors, pumps, and other equipment. Its robust design and high durability ensure reliable operation, making it a great choice for use in harsh environments and applications requiring high performance and efficiency.
Top product features:
- Switches various types of loads within specified ratings using an electromagnetic coil.
- Provides reversing functionality for switching loads in both directions.
- Includes auxiliary contacts configured as 1NO/1NC for additional switching and control capabilities.
Top product applications:
- Control Panels
- Industrial Automation Systems
- Motor Control Systems
The IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for switching various types of loads within specified ratings. The unit is compact and modular and is rated according to applicable utilization categories, commonly used in control panels where standardized sizing and interchangeability are required. This model is a 3-pole reversing type with a coil voltage of 24–60 V AC/DC, auxiliary contacts configured as 1NO/1NC, and screw clamp terminals.
- Coil voltage: 24–60 V AC/DC
- - Poles and auxiliary contacts: 3 poles
- 2 auxiliary contacts (1NO/1NC)
- - Reversing: includes reversing functionality (if applicable)
- - Main contact rating: 32 A resistive, 18 A inductive
- - rated making capacity as specified under standard testing conditions
- - rated for operation at voltages up to 690 V within specified parameters
- - Frequency: 50/60 Hz
- - Enclosure/IP: enclosure rating is IP20
- no additional enclosure provided
- - Mounting/installation: designed for mounting on DIN rail or plate according to installation instructions
- - Connection: equipped with screw clamp terminals suitable for wiring within recommended torque limits
- - Series/frame: TeSys Deca (TeSys)
- - Durability: Electrical 2,200,000 cycles
- 900,000 cycles
- Mechanical 15 Mcycles
- - Electrical characteristics: Hold 0.9 VA
- Inrush 15 VA
- - Dimensions and weight: Depth 3.38 in (overall ~3.39 in)
- Height 3.03 in
- Width 3.54 in
- Net weight 0.803 kg
- - Standards and ratings: CAT III
- 690 V
- UL 94 V1
- Standards include CCC, CSA, UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1, among others
- - Protective features: Embedded surge suppressor: No
- Protective cover: Yes
- - Additional: Impulse withstand: 6 kV
- Pollution degree: 3
- Mercury free
- includes reversing functionality (if applicable)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 53 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.75
- Package Height: 5.38
- Package Weight: 1.80
