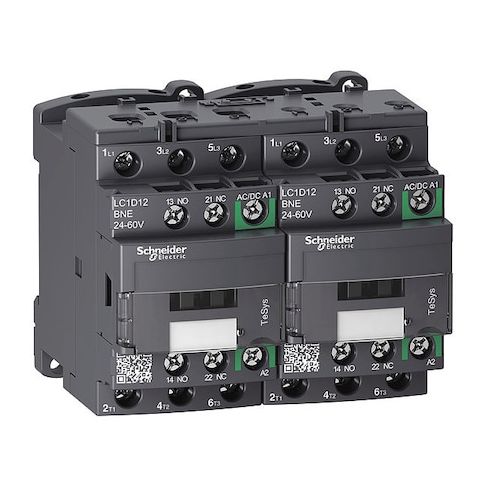

IEC Magnetic Contactor, 1NC/1NO, 24V-60V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D12BNE

• The Schneider Electric IEC Magnetic Contactor is a three-pole, reversing type rated for switching power circuits within specified application types. It is rated for operation within the specified voltage range and uses screw clamp terminals. The device is IEC-style, part of the TeSys Deca family, and includes two auxiliary contacts (1NO/1NC) along with a protective cover and no enclosure. This compact unit is compatible with standard control panel configurations.

  Key features:

  • - Coil Voltage: 24–60 V AC/DC
  • Frequency: 50/60 Hz
  • - Poles/Contacts: 3 poles
  • Auxiliary Contacts: 1NO/1NC (2 total)
  • Includes Auxiliary Contacts: Yes
  • - Reversing: Yes
  • Frame/Series: TeSys Deca
  • Contactor Style: IEC
  • - Rated for operation at voltages up to 690 V
  • current ratings are based on standard testing conditions
  • - Mounting: DIN Rail, Plate
  • Electrical Connection: Screw Clamp
  • - Enclosure: No Enclosure
  • IP20
  • Includes Protective Cover: Yes
  • - Durability: Durability ratings are based on standardized testing procedures and do not imply guaranteed lifespan under all conditions
  • - Operating Times: Typical operating times as per manufacturer specifications under test conditions (Close 45–55 ms
  • Open 20–90 ms
  • Non-Overlap Time: 1.5 ms)
  • - Impulse Withstand Voltage: Conforms to tested impulse withstand voltage levels according to standards
  • - Overvoltage Category: CAT III
  • Standards: UL Listed, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and others
  • - Weight/Dimensions: 0.793 kg
  • Depth 3.38 in, Height 3.03 in, Width 3.54 in
  • - Insulation Resistance: Insulation resistance measured under specified test conditions
