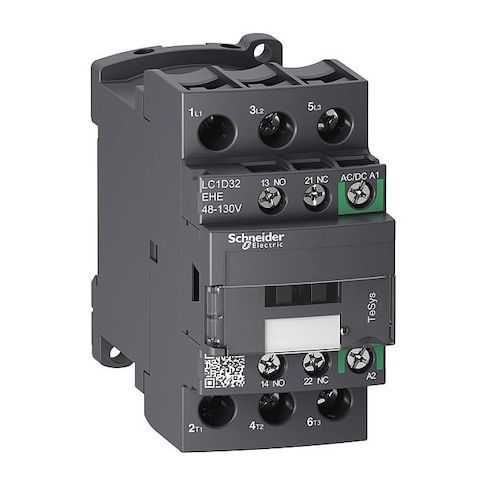

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32EHE
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient switching device designed for motor control and resistive load applications. Compatible with coil voltages of 48-130V AC/DC, it features two auxiliary contacts (1NO/1NC) and screw clamp terminals for easy wiring. Suitable for use in 50/60Hz electrical systems, it's ideal for applications such as HVAC, lighting control, and industrial automation. With a non-reversing design and high mechanical and electrical durability, this contactor ensures safe and reliable operation. Its compact design and DIN rail or plate mounting options make it easy to integrate into existing systems.
Top product features:
- Three-pole switching device with two auxiliary contacts (1NO/1NC) for motor control and resistive load applications.
- Compatible with coil voltages of 48–130 V AC/DC within specified ranges.
- Screw clamp terminals for wiring provide secure and easy connections.
Top product applications:
- Motor control
- Resistive load applications
- General industrial applications
The IEC Magnetic Contactor is a three-pole, non-reversing switching device (TeSys) rated for use in motor control and resistive load applications within specified parameters. It is compatible with coil voltages of 48–130 V AC/DC within specified ranges and uses screw clamp terminals for wiring. The unit includes two auxiliary contacts (1NO/1NC) and does not include surge suppression features or an enclosure
- refer to product specifications for details. It is rated for operation within 50/60 Hz electrical systems as per specifications and is rated for operation at voltages up to 690 V AC within specified conditions.
Key features
- - Coil Voltage: 48–130 V AC/DC
- - Poles and contacts: 3 poles
- main contacts 3 normally open
- auxiliary contacts 2 (1NO/1NC)
- - Rated voltage/frequency: 690 V AC
- 50/60 Hz
- Phase: Three
- - Electrical connections: Screw Clamp Terminals
- - Mounting: DIN Rail or Plate
- Mounts On: Plate, Rail
- - Enclosure: No Enclosure
- IP20
- protective cover included
- - Dimensions and weight: Depth 3.62 in
- Height 3.35 in
- Width 1.77 in
- Net weight 0.438 kg
- - Operating times: 45–55 ms (Closing), 20–90 ms (Opening)
- Non-Overlap 1.5 ms
- - Mechanical/electrical durability: Mechanical Durability 15 Mcycles
- Electrical/operating durability values provided in the specification
- - Other ratings: UL 94 V1 fire rating
- Shock resistance 8 G (Open) and 15 G (Closed)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.70
- Package Height: 2.00
- Package Weight: 0.50
