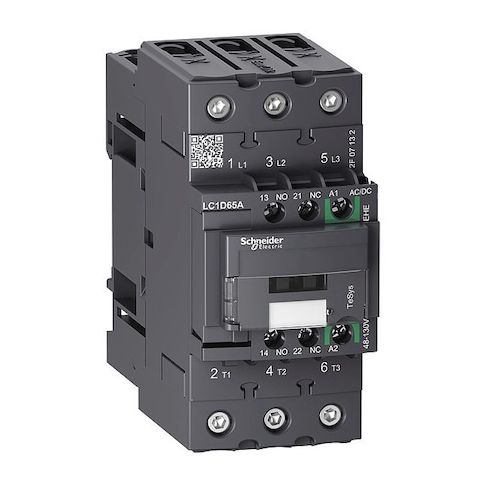

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D65AEHE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and versatile switching device suitable for various applications, including industrial automation, commercial lighting, and HVAC control. Its three-pole design and non-reversing functionality ensure safe and efficient power circuit control. The contactor's 48-130V AC/DC coil and auxiliary contacts provide flexibility and convenience. Its compact design and screw clamp terminals make it easy to integrate into existing systems. With a wide range of certifications and standards compliance, this contactor is ideal for use in various industries, including manufacturing, healthcare, and data centers, where reliable power control is critical.
Top product features:
- Three-pole switching capability for controlling power circuits
- Non-reversing operation ensures consistent and predictable switching behavior
- Screw clamp terminals for control circuit connections provide secure and reliable connectivity
Top product applications:
- Power distribution in industrial control systems
- Motor control in commercial and industrial settings
- Relay replacement in electrical panels and enclosures
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a three-pole, non-reversing, electromagnetic switching device (IEC Magnetic Contactor) intended for use in controlling power circuits within specified electrical ratings. It uses a 48–130 V AC/DC coil and includes auxiliary contacts (1 normally open / 1 normally closed) as specified. Terminals for control and power circuits are Screw Clamp and EverLink BTR connectors, respectively. It is part of the TeSys Deca series, rated for operation within the specified voltage and frequency ranges, with an IP20 enclosure rating indicating limited protection against solid objects, and a net weight of 1.002 kg.
- Coil Voltage: 48–130 V AC/DC
- - Auxiliary Contacts: includes auxiliary contacts (1 normally open / 1 normally closed) as specified
- - Contactor Style / Series: IEC / TeSys Deca
- - Poles / Phase: 3 / Three
- - Reversing: Non-Reversing
- - Control Circuit Terminals: Screw Clamp Terminals
- - Power Circuit Connectors: EverLink BTR Screw Connectors
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: rated for continuous operation at these current levels under normal conditions
- - Rated Making Capacity: rated capacity under standard test conditions
- actual performance may vary based on application specifics
- - Enclosure / IP Rating: has an IP20 enclosure rating indicating limited protection against solid objects
- - Net Weight: 1.002 kg
- - Dimensions: Depth 4.72 in, Height 4.8 in, Width 2.17 in
- - Operating Time: 55–65 ms (Closing), 20–120 ms (Opening)
- - Non-Overlap Time: 1.5 ms
- - Standards: UL Listed
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- CCC
- CSA
- UKCA
- others listed
- - Max. Temperature / Operating Temperature: maximum temperature ratings as per manufacturer specifications
- actual operating temperatures should be maintained within recommended limits
- - Reversing Capability: No
- - Shock / Vibration: 15 G (Closed), 10 G (Open)
- 4 G (Closed), 2 G (Open)
- - Watts Loss: 0.9 W
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.50
- Package Height: 2.38
- Package Weight: 2.29
