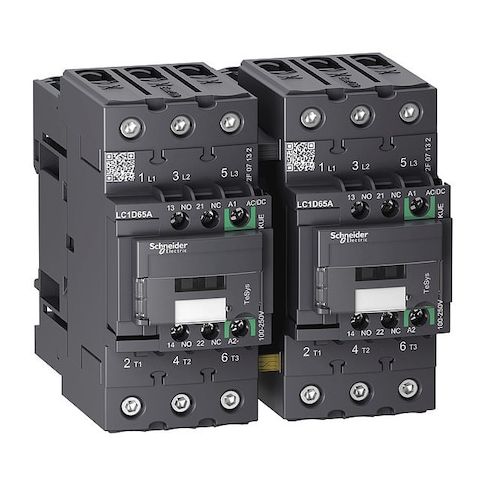

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D65AKUE
Free Shipping
In Stock
The TeSys Deca IEC Magnetic Contactor is a reliable and versatile solution for motor control and resistive load applications. Its reversing capability allows for efficient switching of circuits, while its 3-pole design and screw clamp terminals provide a secure and easy-to-use control circuit. With a wide range of voltage and current ratings, this contactor is suitable for various applications, including industrial automation, commercial buildings, and residential settings. Its compact design and DIN rail mounting make it easy to integrate into existing systems, providing a reliable and efficient solution for controlling electrical circuits.
Top product features:
- Operated by a coil voltage of 100–250 V AC/DC
- Includes 1 normally open and 1 normally closed auxiliary contact
- Supports reversing switching of circuits
Top product applications:
- Motor Control and Resistive Load Control
- Automotive and Industrial Automation
- Power Distribution and Switching
This item is an IEC Magnetic Contactor (TeSys Deca) with reversing capability. It is a 3-pole device operated by a coil voltage of 100–250 V AC/DC and includes 1 normally open and 1 normally closed auxiliary contact (2 total). It is rated for operation with motor control and resistive loads within specified parameters, and it includes screw clamp terminals for the control circuit and EverLink BTR connectors for the power circuit. Does not include an embedded surge suppressor
- IP20 enclosure rating. It supports mounting on DIN rail or plate and supports reversing switching of circuits within its rated specifications.
Key features
- - Poles and contacts: 3 main poles
- 3 normally open main contacts
- 2 auxiliary contacts (1NO/1NC)
- - Coil voltage: 100–250 V AC/DC
- - Maximum and insulation voltage: 690 V AC maximum voltage
- rated insulation voltage 690 V
- - Protection and enclosure: IP20 enclosure rating
- no embedded surge suppressor
- protective cover included
- - Electrical and mechanical durability: electrical durability 1,800,000 cycles
- 500,000 cycles (unspecified conditions)
- mechanical durability 6 Mcycles
- - Current and power handling: full-load resistive 80 A
- full-load inductive 65 A
- rated making capacity 140 A (AC signalling), 250 A (DC signalling), 1000 A @ 440 V (power circuit)
- - Frequency and standards: 50/60 Hz
- standards include UL Listed and EN/IEC 60947-4-1, EN/IEC 60947-5-1, among others
- - Physical dimensions and weight: depth 4.72 in
- height 4.8 in
- width 4.69 in
- net weight 2.174 kg
- - Mounting and connections: DIN Rail and Plate mounting
- mounts on Plate and Rail
- control circuit: screw clamp terminals
- power circuit: EverLink BTR screw connectors
- - Reversing: Yes
- - Series/frame: TeSys Deca
- frame TeSys
- - Additional attributes: shock resistance (15 G closed, 10 G open)
- vibration resistance (4 G closed, 2 G open)
- impulse withstand voltage 6 kV
- max operating temperature as specified
- temperature range includes -40°F to 140°F
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 53 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.35
- Package Width: 7.48
- Package Height: 6.30
- Package Weight: 4.63
