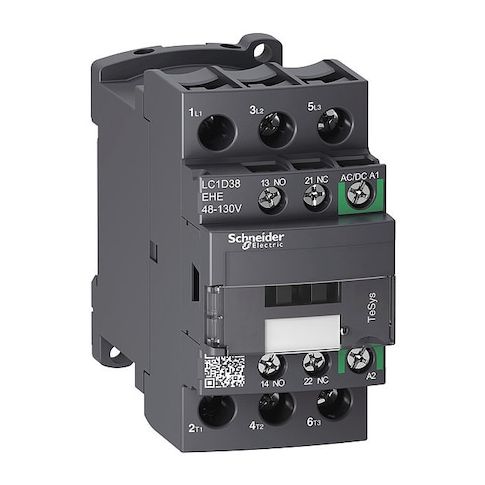

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D38EHE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive-load applications. With its 3-pole, non-reversing design and screw clamp terminals, this device provides a secure and easy-to-use connection. Rated for use with coil voltages between 48-130V AC/DC, it's ideal for a variety of applications, including industrial automation and control systems. Its durable construction and long lifespan make it a cost-effective choice for frequent use. The TeSys Deca family product also features a compact design and IP20 protection, making it a great addition to any electrical system.
Top product features:
- Operates within a wide range of coil voltages from 48–130 V AC/DC
- Has 3 poles that are non-reversing
- Includes auxiliary contacts with a NO/NC configuration for reliable switching
Top product applications:
- Motor control
- Resistive-load applications
- Industrial automation
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch rated for use within specified electrical parameters in motor control and resistive-load applications. It is rated for operation with coil voltages between 48–130 V AC/DC and uses screw clamp terminals for wiring. The device contains auxiliary contacts as specified (NO/NC) and is part of the TeSys Deca family.
Key features
- - Coil Voltage: 48–130 V AC/DC
- - Poles / Reversing: 3 poles
- non-reversing
- - Auxiliary Contacts: NO/NC (2 total)
- - Electrical Connection: Screw Clamp Terminals
- - Frame / Series: TeSys Deca
- - Frequency: 50/60 Hz
- - Maximum Voltage / Insulation: 690 V
- - Enclosure / Protection: has an IP20 rating with included protective cover
- - Dimensions: Depth 3.62 in
- Width 1.77 in
- Height 3.35 in
- - Net Weight: 0.442 kg
- - Durability: mechanical durability of approximately 15 million cycles
- electrical durability up to 1,800,000 cycles under specified conditions
- - Operating Timing: operates within the specified timing ranges under normal conditions
- - Impulse Withstand Voltage: 6 kV
- - Embedded Surge Suppressor: No
- - Additional: Non-overlap time 1.5 ms
- Signalling circuit considerations as specified in data
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.80
- Package Height: 2.10
- Package Weight: 1.00
