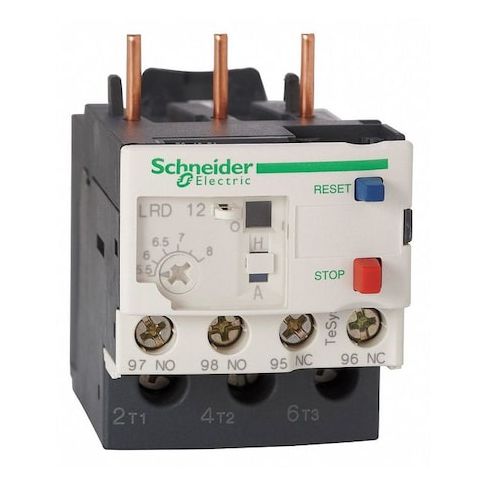

Overload Relay, 1NC/1NO, 9 A Min current, 13 A Max current, 690V AC MPN:LRD16L
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5383061
Overload Relay, 1NC/1NO, 9 A Min current, 13 A Max current, 690V AC
The Schneider Overload Relay is a reliable and efficient solution for protecting electrical equipment from overloads. With a minimum current rating of 9 A and maximum current rating of 13 A, it ensures safe operation within a 690V AC voltage range. This versatile relay features an auxiliary contact form, trip class 20, and automatic/manual reset capabilities. Suitable for direct mounting to contactors, it's ideal for use in industrial settings, such as manufacturing facilities and power distribution systems. Its compact design and easy installation make it a valuable addition to any electrical system, providing enhanced protection and peace of mind.
Top product features:
- 1NC/1NO auxiliary contact form provides a means of controlling external circuits.
- Trip Class 20 ensures a consistent and predictable response to overloads.
- Thermal overload protection prevents damage from excessive current.
Top product applications:
- Industrial Motor Control Systems
- Motor Protection in Hazardous Environments
- Power Distribution Systems
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 13 A, Minimum Overload Relay Current Setting 9 A, Trip Class 20, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.25
- Package Width: 3.56
- Package Height: 1.88
- Package Weight: 0.40
