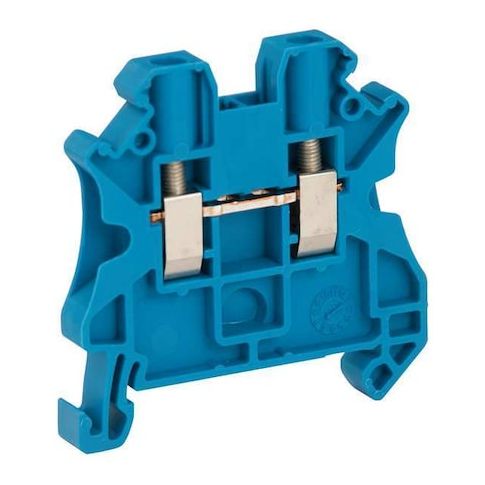

Terminal Block, Pass-Through, 1 Pole, 30 A, 1, 000 V AC, 10 AWG, Screw Termination, Blue MPN:NSYTRV42BL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5240277
Terminal Block, Pass-Through, 1 Pole, 30 A, 1, 000 V AC, 10 AWG, Screw Termination, Blue
The Schneider Terminal Block, Pass-Through, 1 Pole, 30 A, 1,000 V AC, 10 AWG, Screw Termination, Blue is a reliable and efficient solution for various applications. Suitable for use in industrial settings, it provides a secure connection for copper conductors up to 10 AWG, ensuring a stable and reliable flow of power. With its compact design and DIN rail mounting, it saves space and simplifies installation. Ideal for use in hazardous locations, it meets ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, and VDE standards. Perfect for industries such as manufacturing, oil and gas, and power generation, it ensures safe and efficient electrical connections.
Top product features:
- Pass-through design allows for easy wire routing and connectivity
- Screw termination provides a secure and reliable connection
- Supports maximum wire size of 10 AWG for flexible installation options
Top product applications:
- Power Distribution Systems
- Industrial Control Panels
- Automotive Electrical Systems
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Blue, Maximum Voltage 1,000 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 1.88 in, Overall Length 1.88 in, Overall Width 0.24 in, Standards ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE, Terminal Block Type Pass-Through
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 0.25
- Package Weight: 0.02
Product info last updated on March 29, 2026 7:43pm UTC
Category: Electrical Connectors
