Terminal Block, Pass-Through, 2 Pole, 20 A, 600 V AC, 12 AWG, Screw Termination, Gray MPN:NSYTRV24D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5235395

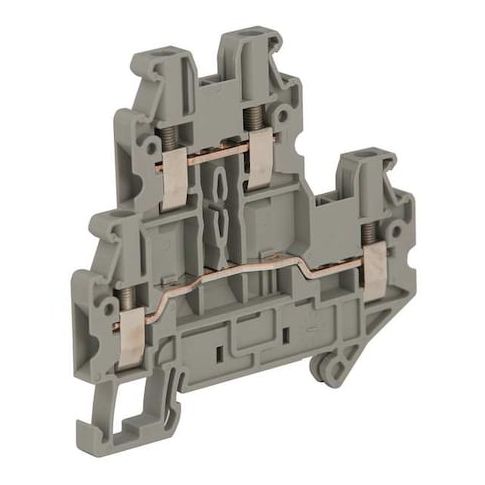

Terminal Block, Pass-Through, 2 Pole, 20 A, 600 V AC, 12 AWG, Screw Termination, Gray
This 2-pole, 20 A, 600 V AC terminal block is designed for efficient pass-through connections in a variety of applications, including industrial control panels, electrical distribution systems, and renewable energy installations. With screw termination and a minimum wire size of 26 AWG and maximum wire size of 12 AWG, it offers flexibility and reliability. The terminal block is certified to multiple international standards, including ATEX, CSA, and UL, ensuring safe and compliant use. Its compact design and DIN mounting type make it ideal for use in a range of industries, including oil and gas, power generation, and manufacturing.
Top product features:
- Pass-through design allows for easy wire routing and connection management.
- Screw termination facilitates secure and reliable connections to wires.
- Housing design supports up to 4 tiers of connections, increasing the number of wires that can be managed in a single unit.
Top product applications:
- Industrial Automation
- Electrical Panel Building
- Power Distribution Systems
Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 20 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 600 V AC, Mounting Type DIN, Number of Poles 2, Number of Tiers 4, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 2.75 in, Overall Length 2.75 in, Overall Width 0.2 in, Standards ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, Terminal Block Type Pass-Through
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.75
- Package Width: 2.50
- Package Height: 0.25
- Package Weight: 0.01
Product info last updated on March 27, 2026 4:45am UTC
Category: Electrical Connectors
