Terminal Block, Fused Disconnect, 1 Pole, 10 A, 500 V AC, 8 AWG, Screw Termination, Black MPN:NSYTRV42SF6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5235377

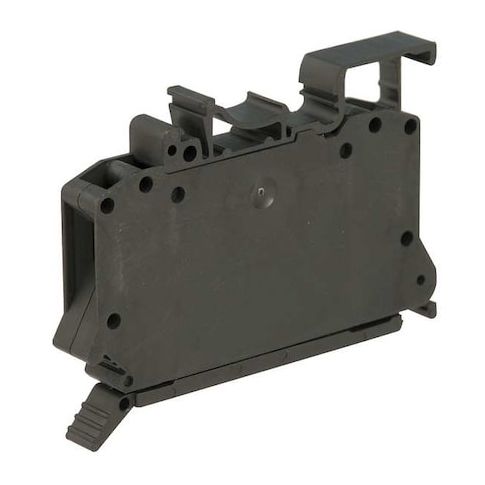

Terminal Block, Fused Disconnect, 1 Pole, 10 A, 500 V AC, 8 AWG, Screw Termination, Black
This Schneider terminal block is a reliable and efficient solution for circuit protection and electrical connections. Its fused disconnect design ensures safe and easy disconnection of power, making it ideal for applications in commercial and industrial settings. With a current rating of 10 A and a maximum voltage of 500 V AC, it can handle a wide range of electrical loads. The terminal block's screw termination and DIN rail mounting make it easy to install and integrate into existing systems. Suitable for use with copper conductors of 26 AWG to 8 AWG, it's a versatile and convenient solution for electrical engineers and technicians.
Top product features:
- Protects against overcurrent with a 10 A rating
- Provides a secure screw clamp connection for easy wire termination
- Compliant with CSA, CURus, and EAC standards for safe operation up to 500 V AC
Top product applications:
- Power distribution in industrial settings
- Electrical panel assembly
- Switchgear and control cabinet construction
Terminal Block, Circuit Protection Type Fuse, Connection Type Screw Clamp, Current 10 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 8 AWG, Housing Color Black, Maximum Voltage 500 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 1/4 in, For Fuse Length 1.25 in, Overall Depth 3.11 in, Overall Length 3.11 in, Overall Width 0.4 in, Standards CSA Certified, CURus, EAC
Additional Information
- Country of Origin: TR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.50
- Package Height: 0.50
- Package Weight: 0.07
Product info last updated on February 23, 2026 1:15am UTC
Category: Electrical Connectors
