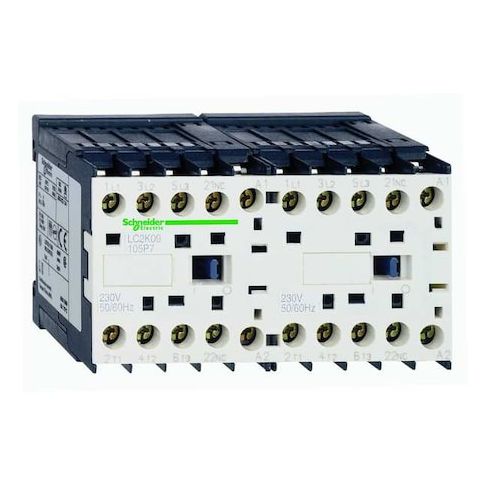

IEC Miniature Magnetic Contactor, 2NC, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2K0601G7
Free Shipping
In Stock
The Schneider Electric IEC Miniature Magnetic Contactor is a compact and reliable solution for motor control and low-power applications. With its 3-pole, reversing-action design and 120 V AC coil, it's ideal for use in a variety of settings, including industrial automation, commercial facilities, and residential systems. The contactor features two normally closed auxiliary contacts and three normally open main contacts, all connected via screw clamp terminals for easy installation. Its compact size and robust design make it perfect for applications where space is limited, such as in control panels or as a replacement for existing contactors in existing systems.
Top product features:
- The product has 3 normally open main contacts and 2 normally closed auxiliary contacts.
- It has a reversing action, allowing for the control of motor direction.
- It is rated for use in motor control and low-power applications within specified parameters.
Top product applications:
- Motor Control
- Low-power applications
- Reversing applications
The SCHNEIDER ELECTRIC IEC Miniature Magnetic Contactor is a 3-pole, reversing-action device rated for use in motor control and low-power applications within specified parameters. It has a 120 V AC coil and includes two normally closed auxiliary contacts (2 NC) along with three normally open main contacts, all arranged for screw clamp terminals. This IEC-style contactor is part of the TeSys K series and is supplied without an enclosure
- suitable for indoor installation in protected environments.
- Action: Reversing
- - Application: Motor Control
- - Coil Voltage: 120 V AC
- - Contactor Style: IEC
- - Poles: 3
- - Main Contacts: 3 normally open
- - Auxiliary Contacts: 2 NC
- - Electrical Connection: Screw Clamp Terminals
- - Series: TeSys K
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Rated Currents: 6 A inductive
- 15 A resistive (Full Load)
- - Electrical Durability: 1.3 Mcycles
- - Mechanical Durability: 5 Mcycles
- - Hold VA: 4.5 VA
- - Net Weight: 0.39 kg
- - Dimensions: Width 3.54 in
- Overall Height 2.28 in
- Overall Depth 2.24 in
- - Impulse Withstand Voltage: 8 kV
- - Standards: BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
- - Enclosure: No Enclosure
- IP20
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.40
- Package Height: 2.50
- Package Weight: 0.79
