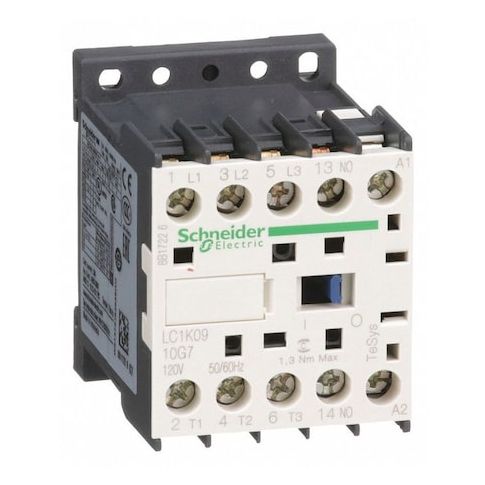

IEC Miniature Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1K0910G7
Free Shipping
In Stock
The Schneider Electric IEC Miniature Magnetic Contactor is a versatile and reliable motor control device designed for industrial applications. Its 120V AC coil voltage and 1NO auxiliary contact configuration make it suitable for a wide range of uses, from single-phase to three-phase systems. With a full load amp rating of 9A inductive and 20A resistive, this contactor can handle demanding loads and applications, including motor control, lighting, and HVAC systems. Its compact design and screw clamp terminal connection provide flexibility and ease of installation, making it an ideal choice for various industries and settings.
Top product features:
- Operates at a frequency of 50/60 Hz.
- Features an auxiliary contact configuration of 1NO (Normally Open) and three main contacts that are also normally open.
- Has a breaking capacity of up to 110 amps at lower voltages such as 220 volts or 415 volts.
Top product applications:
- Industrial Lighting Control
- Automotive Starter Motor Control
- General Purpose Motor Control
The SCHNEIDER ELECTRIC - IEC Miniature Magnetic Contactor is a motor control and resistive load device designed for industrial applications. This non-reversing contactor operates with a coil voltage of 120V AC, making it compatible with specified electrical systems. It features an auxiliary contact configuration of 1NO (Normally Open) and three main contacts that are also normally open. The product does not include an enclosure, allowing for flexible installation options based on your specific needs.
Key Features:
- - Operates at a frequency of 50/60 Hz.
- - Full Load Amps: Inductive - 9 A
- Resistive - 20 A.
- - Horsepower specifications are as follows: minimum of 1/2 hp at Single Phase - 120V AC, maximum of 5 hp at Three Phase -600V AC.
- - Operating wattage varies depending on voltage, ranging from a minimum of 2.2 kW to a maximum of 4 kW.
- - Control Circuit Voltage Specifications: Functions within the range of .8 and 1.15 Uc under conditions approximating fifty degrees Celsius
- drop-out occurs between .2 and .75 Uc under similar conditions.
- - Equipped with Auxiliary Contacts
- - Breaking capacity is dependent on voltage, varying from seventy amps at six hundred sixty volts up to one hundred ten amps at lower voltages such as two hundred twenty volts or four hundred fifteen volts.
- -Terminal Connection Type: Screw Clamp
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.00
- Package Height: 2.60
- Package Weight: 0.40
