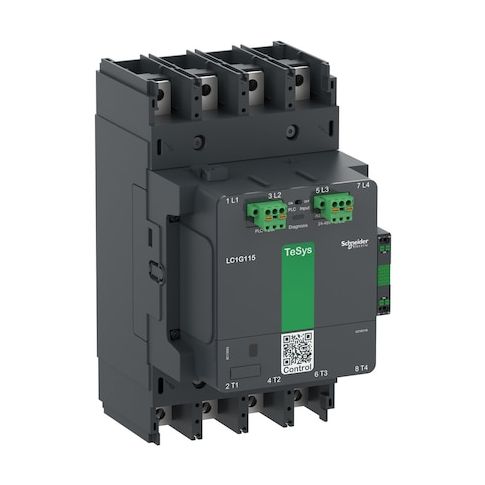

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type MPN:LC1G1854EHEA
Free Shipping
In Stock
The Schneider TeSys Giga IEC Magnetic Contactor is a reliable and efficient control device for single-phase applications. Its 4-pole design and 48-130V AC/DC coil voltage rating make it suitable for a wide range of uses, including industrial control systems, lighting control, and HVAC applications. With its spring-type terminals and IP20 rating, it provides secure and easy installation. The unit's auxiliary contacts and high mechanical durability ensure reliable operation over millions of cycles. Its compact size and robust design make it an ideal choice for applications where space is limited, such as in control panels and enclosures.
Top product features:
- The IEC Magnetic Contactor includes two auxiliary contacts (1NC/1NO) for added functionality.
- It is a 4-pole, single-phase control device suitable for various applications.
- The unit uses spring-type terminals for plate mounting, providing a secure and easy connection method.
Top product applications:
- Motor Control Panels
- HVAC Systems
- Industrial Automation Systems
The IEC Magnetic Contactor is a 4-pole, single-phase control device from the TeSys Giga family. It includes two auxiliary contacts (1NC/1NO) and a coil rated for 48–130V AC/DC. The unit uses spring-type terminals for plate mounting. Rated for operation within the specified voltage ranges, with an IP20 rating and a temperature range from -13 °F to 140 °F.
Key features
- - Item: IEC Magnetic Contactor
- Series: TeSys Giga
- Phase: Single
- Poles: 4
- Mounting: Plate
- Terminal: Spring Type
- Includes auxiliary contacts: Yes (2 total
- 1NC/1NO)
- - Coil voltage: 48–130V AC/DC
- Frequency: 50/60 Hz
- - Maximum voltage rating: 1000V AC
- IP rating: IP20
- - Auxiliary contacts: 2 (1NC/1NO)
- - Full Load Amps: Inductive 250 A
- Resistive 305 A
- - Full Load Current: Inductive 185 A
- Resistive 305 A
- - Operating temperature: -13 °F to 140 °F
- - Mechanical durability: 8,000,000 cycles
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Maximum operating voltage: 1000V AC
- - Dimensions: Depth 7.6 in
- Height 10.04 in
- Width 5.63 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 56 days
- Minimum Order Quantity: 6
- Unit of Measure: EA
- Package Length: 15.16
- Package Width: 10.24
- Package Height: 9.84
- Package Weight: 14.07
