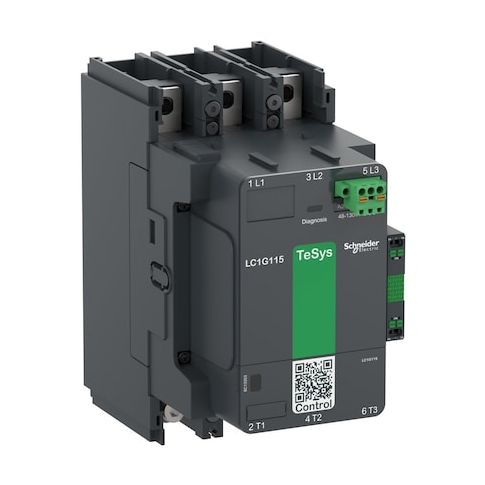

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Spring Type MPN:LC1G115EHEN
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and power distribution. Its 3-pole design and 1NC/1NO auxiliary contacts make it ideal for use in single-phase systems. With a coil voltage range of 48V-130V AC/DC and a maximum voltage rating of 1000V AC, this contactor can handle a variety of power requirements. Its durable design and high mechanical durability of 8,000,000 cycles make it a great choice for demanding applications, and its compact size makes it easy to integrate into existing systems.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 1NC/1NO auxiliary contacts for signaling.
- It uses an electromagnetic coil to open or close its main contacts.
- It features spring-type terminal connections mounted on a plate.
Top product applications:
- Control Panel Assembly
- Automated Machine Control
- Industrial Automation Systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole, electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close its main contacts and includes auxiliary signaling contacts (1NC/1NO, for a total of 2 auxiliary contacts). The coil voltage range is 48V-130V AC/DC. It features spring-type terminal connections mounted on a plate, and is part of the TeSys Giga series. Rated for operation within the specified voltage and frequency ranges.
Key features
- - Auxiliary contacts: 1NC/1NO (2 total)
- includes auxiliary contacts: Yes
- - Coil voltage: 48V-130V AC/DC
- - Poles: 3
- Phase: Single
- - Mounting style: Plate
- - Terminal connection: Spring Type
- - IP rating: IP20
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 1000V AC
- - Full Load Amps (Inductive/Resistive): 210 A / 250 A
- - Full Load Current (Inductive/Resistive): 115 A / 250 A
- - Mechanical durability: 8,000,000 cycles
- - Temperature range: -13 to 140 Degrees F
- - Dimensions: Depth 7.6 in
- Height 7.6 in
- Width 4.25 in
- - Series: TeSys Giga
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 81 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.16
- Package Width: 9.25
- Package Height: 9.84
- Package Weight: 10.49
