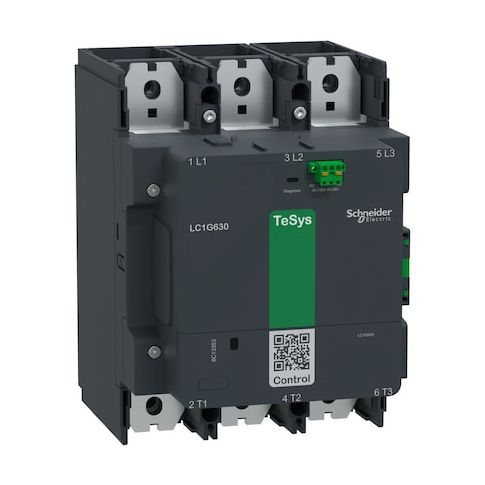

main product photo

IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Spring Type MPN:LC1G630KUEN

Discount: See in Cart
Free Shipping
In Stock
Brand: Schneider
Part #: LC1G630KUEN
UPC: 3606481922007
SKU
510-G510190342
Regular Price $6,966.39 Special Price $4,975.99

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

Add to Wish List Add to Compare
IEC Magnetic Contactor, 1NC/1NO, 100V-250V AC/DC, 3 P, Spring Type

The Schneider Electric IEC Magnetic Contactor is a 3-pole, IEC-style device used to switch power circuits in control panels. It features a 100–250 V AC/DC coil, spring-type terminals, and two auxiliary contacts configured as 1NC/1NO. It is part of the TeSys Giga series and mounts to a plate. The unit is rated for operation at voltages up to 1000 V AC, rated for operation within the specified frequency range of 50/60 Hz, and has an IP20 enclosure. It has a mechanical cycle life expectancy based on testing standards and an operating temperature range from -13°F to 140°F.

- Auxiliary contacts: 2 (1NC/1NO)

  • - Coil voltage: 100–250 V AC/DC
  • - Poles: 3
  • - Mounting style: Plate
  • - Terminal connection type: Spring Type
  • - Maximum voltage rating: 1000 V AC
  • - Frequency: 50/60 Hz
  • - IP rating: IP20
  • - Embedded surge suppressor: No
  • - Full Load Amps - Inductive: 850 A
  • - Full Load Amps - Resistive: 1,050 A
  • - Full Load Current - Inductive: 630 A
  • - Full Load Current - Resistive: 1,050 A
  • - Maximum operating temperature: designed for use within an ambient temperature range up to 140°F (60°C)
  • - Minimum operating temperature: designed for use within an ambient temperature down to -13°F (-25°C)
  • - Mechanical operating durability: 5,000,000 cycles
  • - Overall depth × height × width: 10.47 in × 11.18 in × 8.31 in
  • - Phase: Single
  • - Series: TeSys Giga
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1


    • Additional Information

    • Country of Origin: CN
    • Drop Ship Item: No
    • Blind Ship Eligible: No
    • LTL Freight Required: No
    • Lead Time: Ships in 1 days
    • Minimum Order Quantity: 1
    • Unit of Measure: EA
    • Package Length: 20.08
    • Package Width: 13.58
    • Package Height: 11.81
    • Package Weight: 36.20
    Product info last updated on February 10, 2026 11:27am UTC Category: Industrial Electrical Controls and Automation
